Description

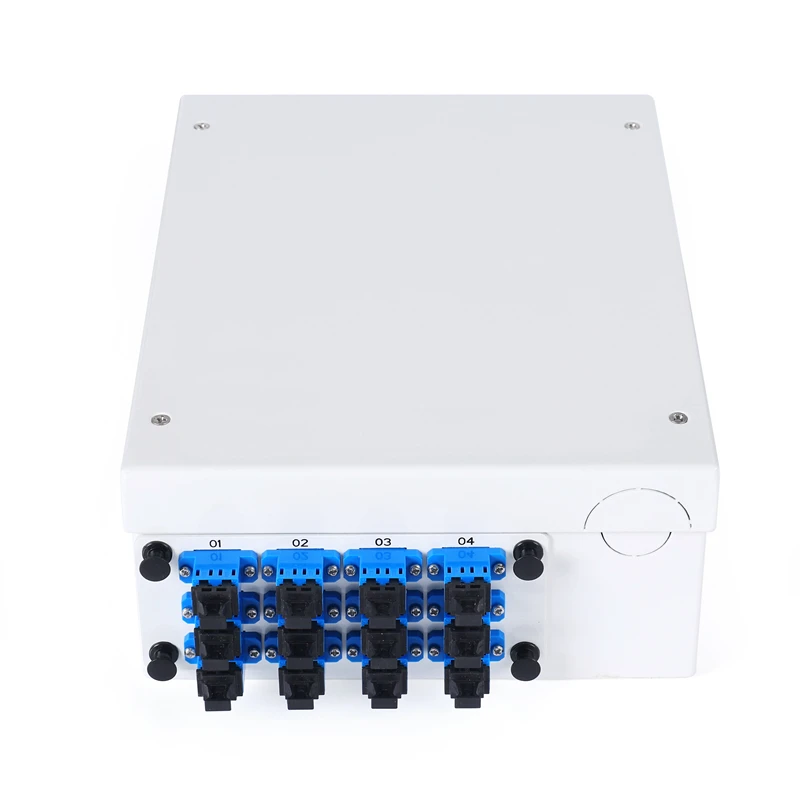

This wall-mounted box is with a removable adapter panel, designed with cutouts for installing 12 LC duplex adapters. Includes 2 DIN RAIL clips with mounting positions on the bottom, allowing secure attachment to DIN RAIL brackets. Features knockout cable entries of 20mm diameter on both the front and back for flexible and organized cable routing.
This configuration supports modular fiber connectivity, tool-free panel access, and adaptable mounting, making it suitable for indoor network or Telecom installations requiring efficient space use and reliable cabling management.
Box Dimension: L164 x W224 x H76mm
Features
Material is with high quality cold rolled steel.
Can install maximum 24 fiber products.
Ports are available from 2 to 12 SC simplex or LC duplex
Adaptor and pigtails color available Beige/Blue/Green/Aqua/Violet/Lime Green
ROHS compliant
REACH compliant
Parameter
Adaptor and pigtail Insertion loss≤0.2dB
