Description

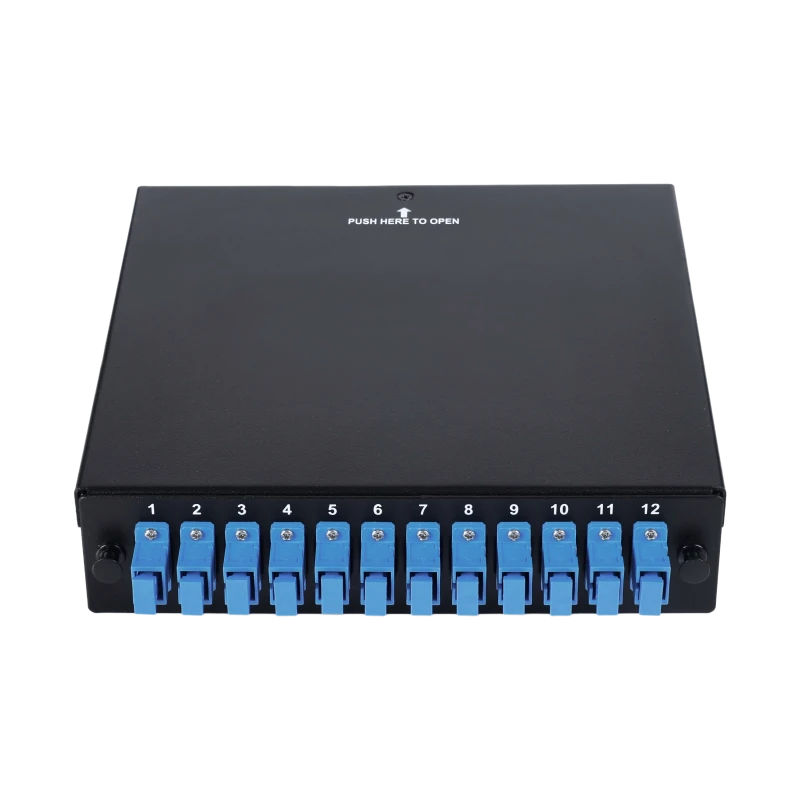

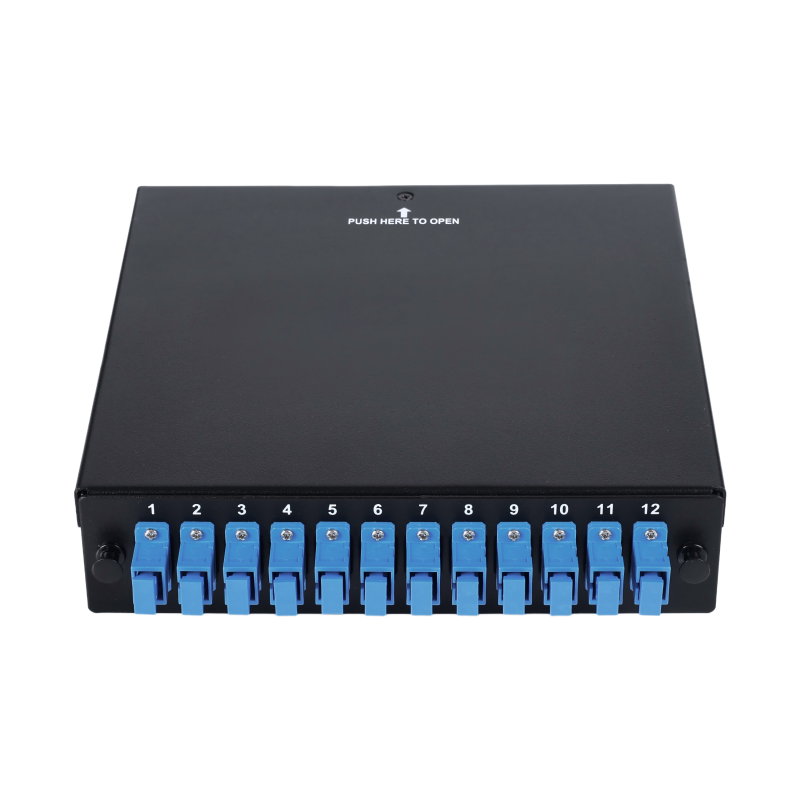

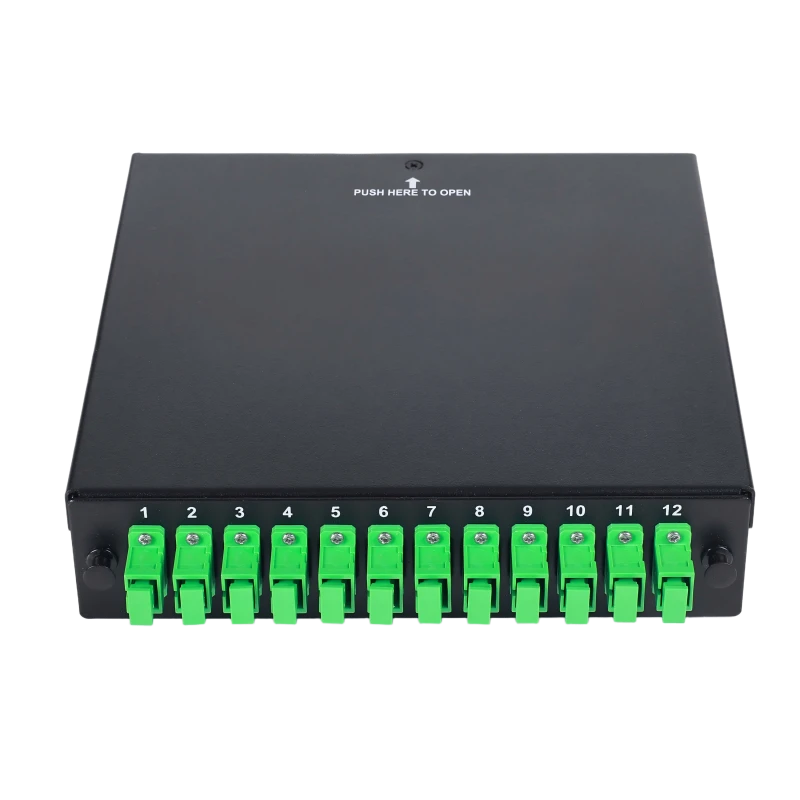

This wall-mounted enclosure is with a removable adapter panel, designed with cutouts for installing 12 LC duplex adapters (panel swap allows compatibility with 12 SC simplex adapters). Secured with a single screw for easy cover fastening and removal. It includes 2 DIN RAIL clips, with mounting positions available on the back, both sides, and bottom for flexible DIN RAIL attachment. Features knockout cable entries of 20mm diameter on both the back and sides for organized cabling.
This design supports quick panel replacement, tool-free installation, and adaptable mounting options, ideal for compact network enclosures requiring modular connectivity and space-efficient deployment.
Dimension:L180 x W180 x D40mm
Features
Material is with high quality cold rolled steel.
Can install maximum 24 fiber products.
Ports are available from 2 to 12 SC simplex or LC duplex
Adaptor and pigtails color available Beige/Blue/Green/Aqua/Violet/Lime Green
ROHS compliant
REACH compliant
Parameter
Adaptor and pigtail Insertion loss≤0.2dB
