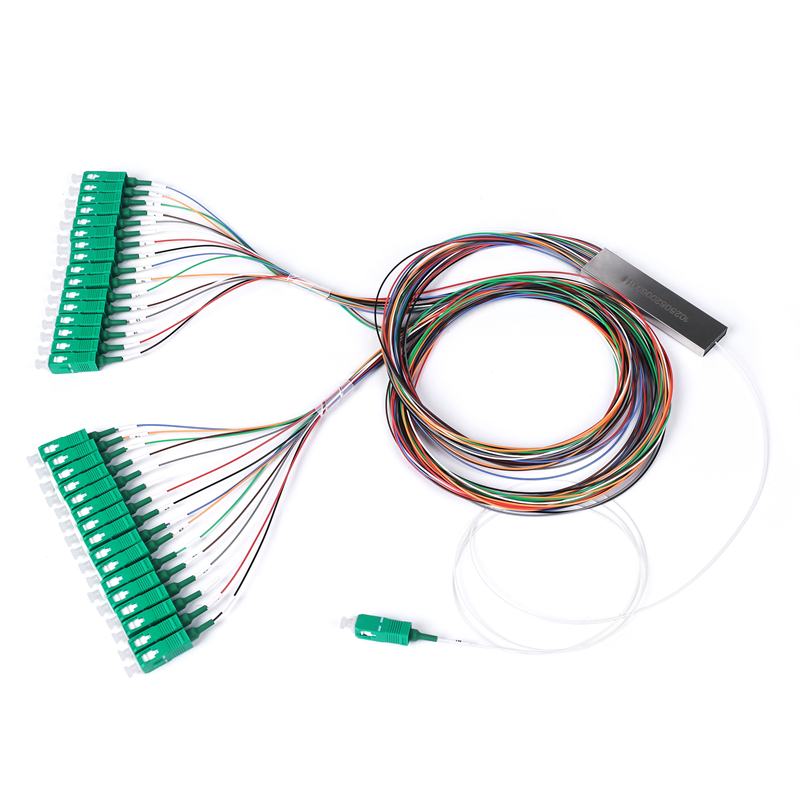

1 x 32 SC/APC Splitter 900μm is a compact, passive optical splitter based on Planar Lightwave Circuit (PLC) technology, designed to evenly split one input optical signal into 32 output channels. It is widely used in fiber-to-the-home (FTTH), GPON, and XG-PON access networks.
Housed in a steel tube package (typically 60×4×4mm), this device offers a space-saving, robust design with excellent resistance to compression, moisture, and harsh environmental conditions, making it ideal for long-term, stable deployment in confined or challenging locations such as outdoor splice closures, hallway fiber distribution boxes, and cable cross-connect cabinets.
Features
Insertion Loss: ≤ 0.20dB
Operating wavelength from 1260nm to 1650nm
Operating Temperature: -40°C ~ +80°C
ROHS compliant
REACH compliant
Standard color or customized.
|
Type |
Mode |
Connector |
Connector Color |
Housing Material |
|
1 X N |
Singlemode PC |
LC or SC |
Blue |
Metal |
|
Singlemode APC |
LC or SC |
Green |
Metal |
