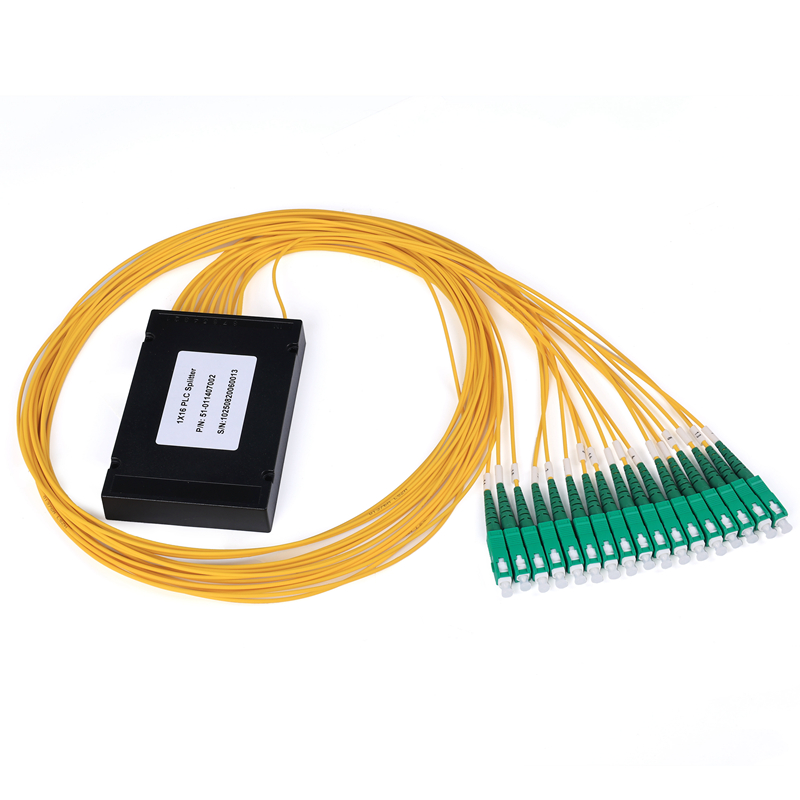

1 x 16 PLC Splitter 2.0mm is a passive optical splitter based on Planar Lightwave Circuit (PLC) technology, designed to uniformly distribute one input optical signal into 16 output channels. It is widely used in fiber-to-the-home (FTTH) and passive optical network (PON) access systems.
Featuring 2.0mm wide-key fiber pigtails (typically tight-buffered construction), this device offers excellent bend resistance and mechanical robustness, making it suitable for long-term, stable operation in fixed installations such as distribution boxes and network cabinets.
Features
Insertion Loss：≤ 0.20dB
Operating wavelength from 1260nm to 1650nm
Operating Temperature：-40°C ~ +80°C
ROHS compliant
REACH compliant
Standard color or customized.
|
Type |
Mode |
Connector |
Connector Color |
Housing Material |
|
1 X N |
Singlemode PC |
LC or SC |
Blue |
ABS |
|
Singlemode APC |
LC or SC |
Green |
ABS |
