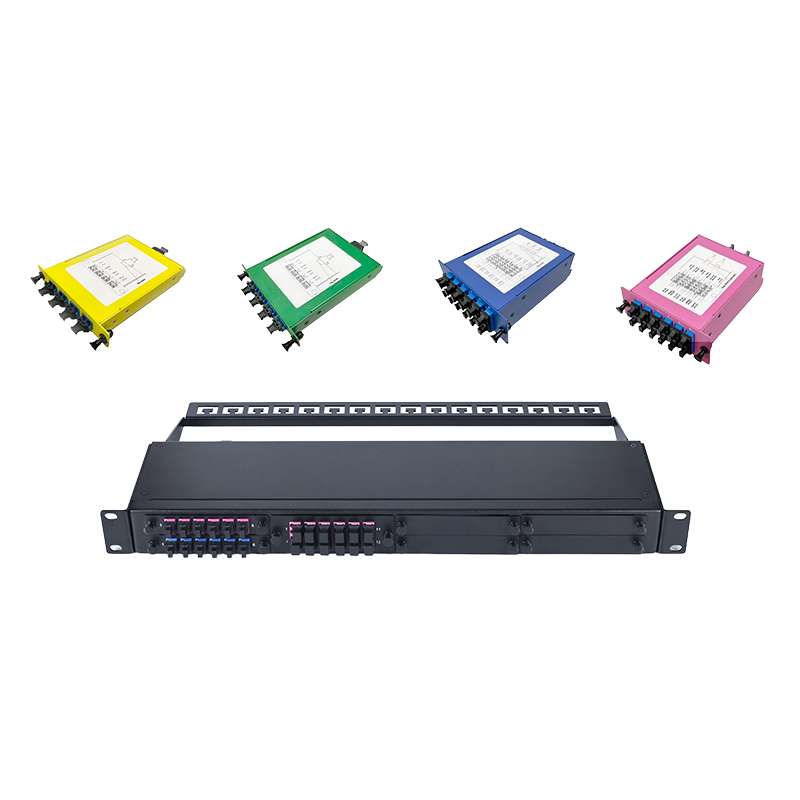

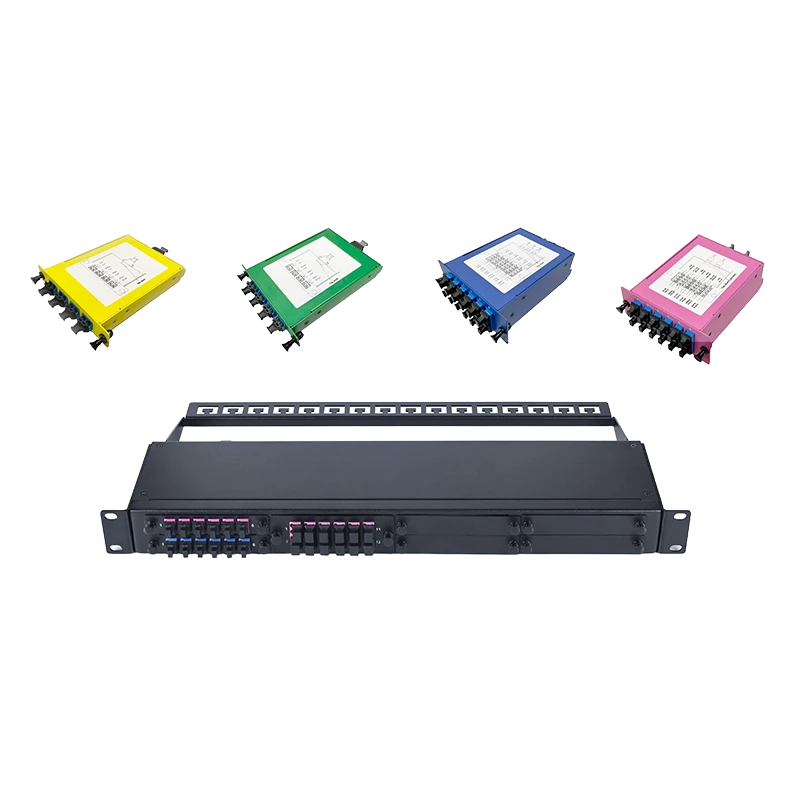

This 1U panel is designed to accommodate multiple MTP-LC or MTP-SC pre-terminated cassettes, supporting up to 96 fibers in a single 1U space. It seamlessly breaks out multi-fiber MTP trunk cables into standard LC/SC duplex ports, creating a structured transition between backbone cabling and active network equipment in data center MDA, IDF and EDA zones.
Features
Material is with high quality cold rolled steel
High flexibility for mixed deployment
ROHS compliant
REACH compliant
Components
MTP-4xLC Duplex Module
MTP-12xLC Duplex Module
Blanking face plates for vacant slots that without modules.
Parameter
| Type | Insertion Loss | Return loss |
| MTP/PC Elite | ≤0.35dB | ≥20dB |
| ≤0.35dB+(L-50M)*3dB/km ( For L>50M ) | ≥20dB | |
| MTP/APC Elite | ≤0.35dB | ≥65dB |
| LC/PC | ≤0.2dB | ≥20dB |
| LC/UPC | ≤0.25dB | ≥55dB |
| LC/APC | ≤0.25dB | ≥65dB |
