Description

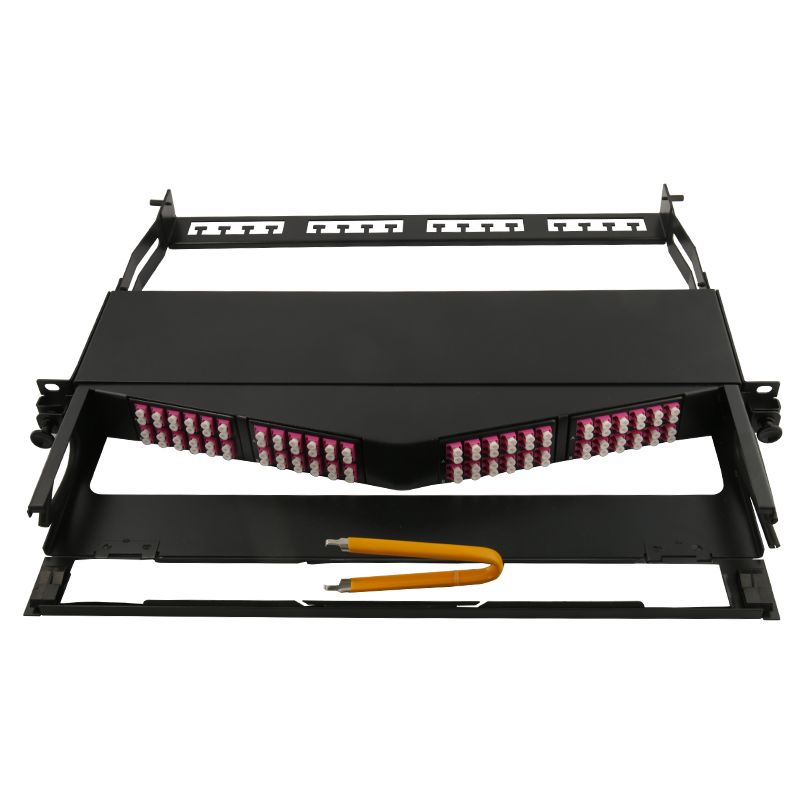

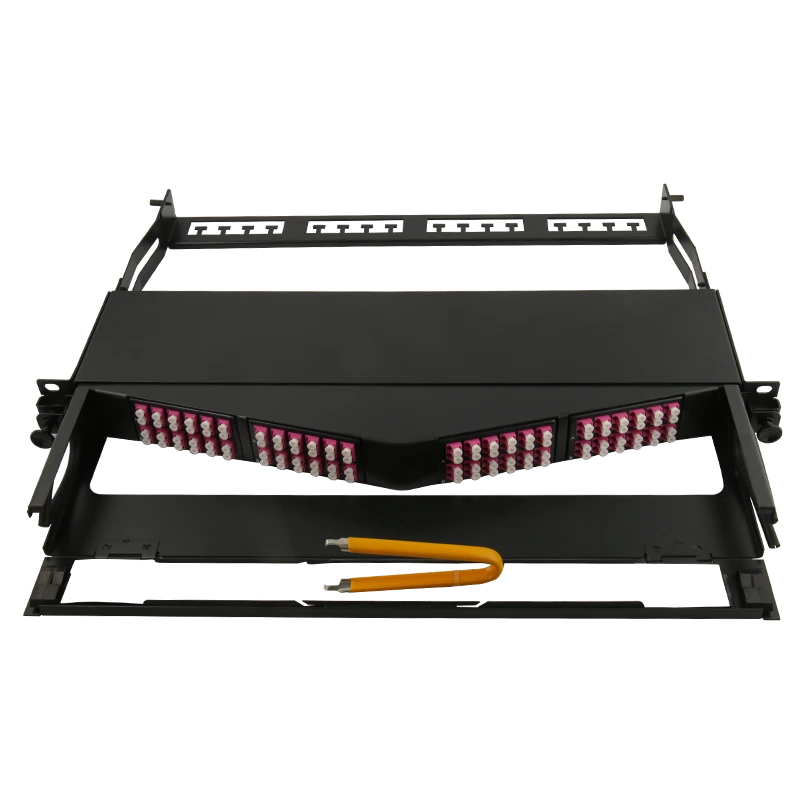

1U Angled panel designed for Hi-density products which included with a nipper inside for the easy release of the LC connector patchcords. Each cassette installed with 24pcs LC duplex adapters, which can install 96 fiber products, suitable for the link of MTP to MTP trunk cables, MTP to LC trunk cables.
Features
Material is with high quality cold rolled steel.
Can install maximum 96 fiber products.
ROHS compliant
REACH compliant
Durability : 500 times mating
Components
| Component | Description | Color Available | Material |
| Module | 2x MTP-12xLC Duplex | Black or customized | SPCC |
| Adaptor | 2x MTP | Grey/Green/Aqua/H-Violet | Plastic |
| MTP Assembly | 12x LC duplex | Beige/Blue/Aqua/H-Violet | Plastic |
| 2x MTP connector | Yellow/Aqua/H-Violet/Lime green | Plastic | |
| 2x12 color LC 0.9mm pigtails | Beige/Blue/Aqua/Violet/Lime green | LSZH |
Parameter
| Type | Insertion Loss | Return loss |
| MTP/PC Elite | ≤0.35dB | ≥20dB |
| ≤0.35dB+(L-50M)*3dB/km ( For L>50M ) | ≥20dB | |
| MTP/APC Elite | ≤0.35dB | ≥65dB |
| LC/PC | ≤0.2dB | ≥20dB |
| LC/UPC | ≤0.25dB | ≥55dB |
| LC/APC | ≤0.25dB | ≥65dB |
