Description

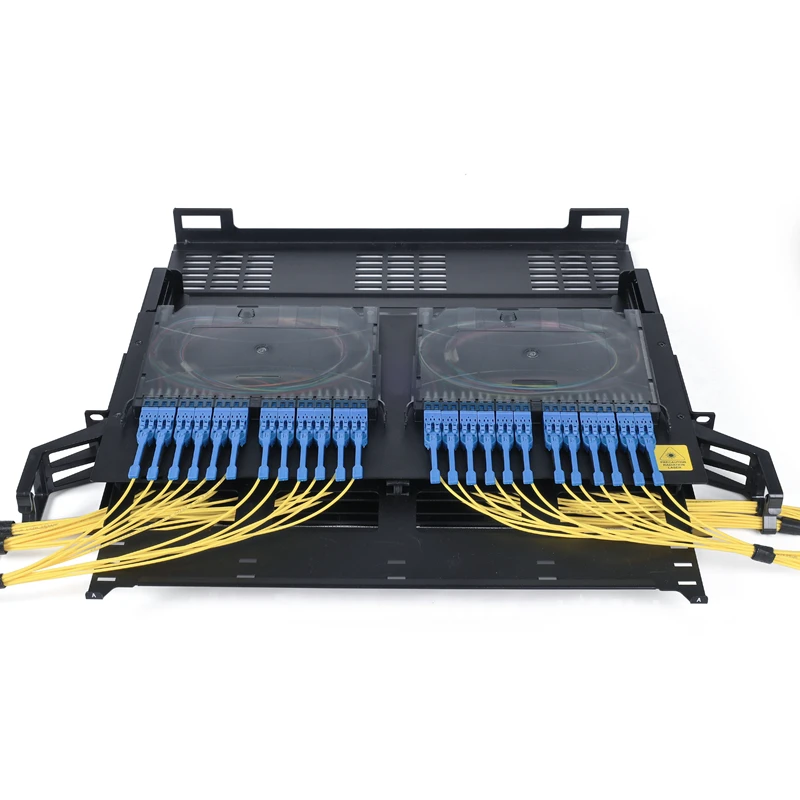

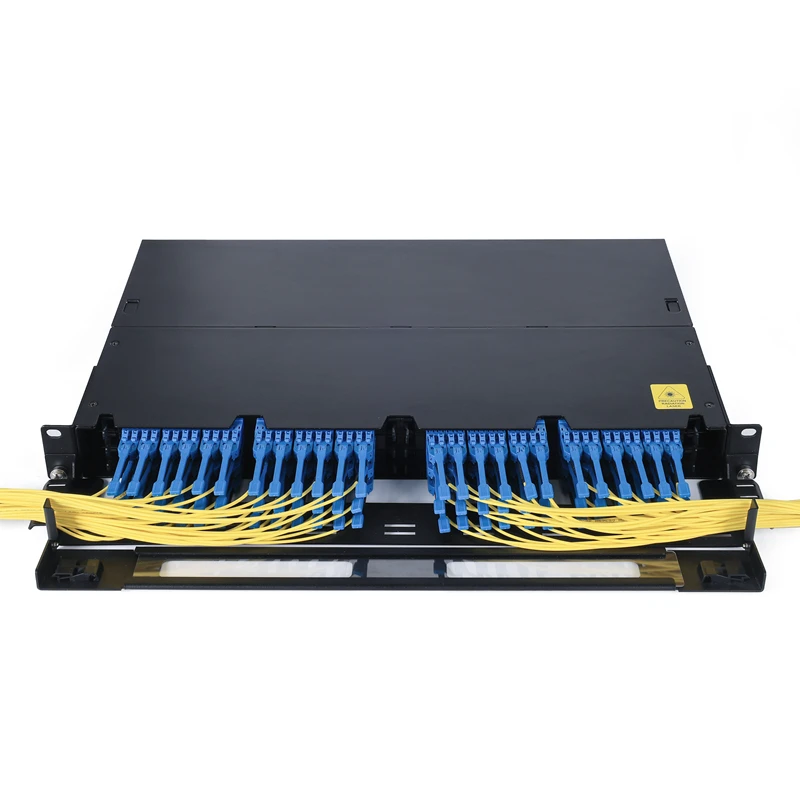

1U 144 fiber HD panel designed for for High-density product interconnection. Each panel installed with 6 modules, each module loaded with 2x MTP- 12x LC duplex patchcord with pull tab, which can install maximum 144 fiber products, suitable for the link of MTP to LC trunk cables.
Its’ modular structure supports easy maintenance, and upgrades, suitable for data centers, enterprise server rooms, and other environments with strict requirements for space and connection density, enabling efficient and reliable fiber optic cabling management.
Features
Less space more dense.
Material is with high quality cold rolled steel.
Hi-density design can install maximum 144 fiber products.
ROHS compliant
REACH compliant
Components
|
Component |
Description |
Color Available |
Material |
|
Panel |
144 Fiber Panel |
Black or customized |
SPCC |
|
Module |
2x MTP-12xLC Duplex |
Transparent Grey |
Plastic |
|
Adaptor |
2x MTP |
Grey/Green/Aqua/H-Violet |
Plastic |
|
12x LC uniboot duplex |
Beige/Blue/Aqua/H-Violet |
Plastic |
|
|
MTP Assembly |
2x MTP connector |
Yellow/Aqua/H-Violet/Lime green |
Plastic |
|
2x12 color LC 0.9mm pigtails |
Beige/Blue/Aqua/Violet/Lime green |
LSZH |
Parameter
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC Elite |
≤0.35dB |
≥20dB |
|
≤0.35dB+(L-50M)*3dB/km ( For L>50M ) |
≥20dB |
|
|
MTP/APC Elite |
≤0.35dB |
≥65dB |
|
LC/PC |
≤0.2dB |
≥20dB |
|
LC/UPC |
≤0.25dB |
≥55dB |
|
LC/APC |
≤0.25dB |
≥65dB |
