Description

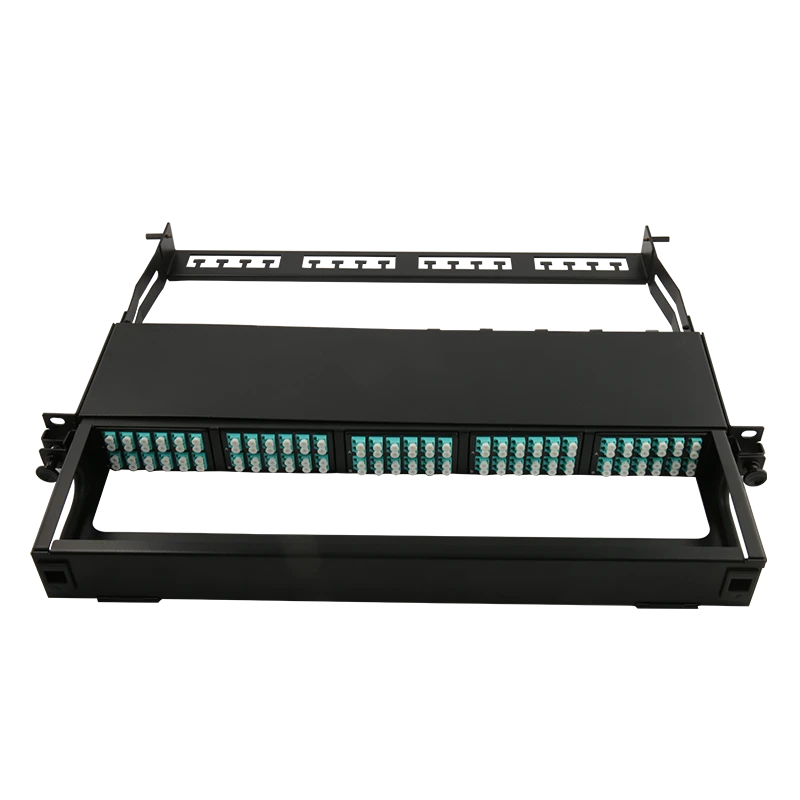

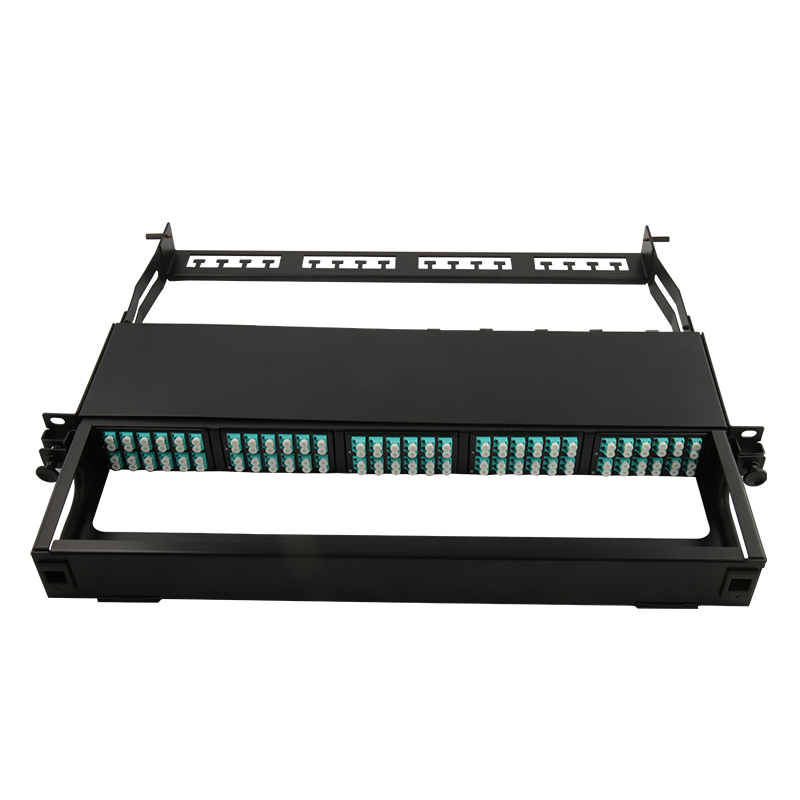

This 1U 19-inch standard rack-mount patch panel integrates 5 independent 24-fiber MTP-LC cassettes, delivering a total of 120 LC ports in just 1 rack unit space. It acts as a dedicated transition hub that breaks out high-fiber-count MTP backbone trunks into standard LC interfaces, creating a seamless structured interconnection between MDA main cross-connect zones and EDA server racks for 10G/40G/100G high-speed networks.
Features
Less space more dense.
Material is with high quality cold rolled steel.
Can install maximum 120 fiber products.
ROHS compliant
REACH compliant
Durability : 500 times mating
Components
| Component | Description | Color Available | Material |
| Module | 2X MTP-12xLC Duplex | Black or customized | SPCC |
| Adaptor | 2 X MTP | Grey/Green/Aqua/H-Violet | Plastic |
| 12X LC duplex | Beige/Blue/Aqua/H-Violet | Plastic | |
| MTP Assembly | 2XMTP connector | Yellow/Aqua/H-Violet/Lime green | Plastic |
| 2X12 color LC 0.9mm pigtails | Beige/Blue/Aqua/Violet/Lime green | LSZH |
Parameter
| Type | Insertion Loss | Return loss |
| MTP/PC Elite | ≤0.35dB | ≥20dB |
| ≤0.35dB+(L-50M)*3dB/km ( For L>50M ) | ≥20dB | |
| MTP/APC Elite | ≤0.35dB | ≥65dB |
| LC/PC | ≤0.2dB | ≥20dB |
| LC/UPC | ≤0.25dB | ≥55dB |
| LC/APC | ≤0.25dB | ≥65dB |
