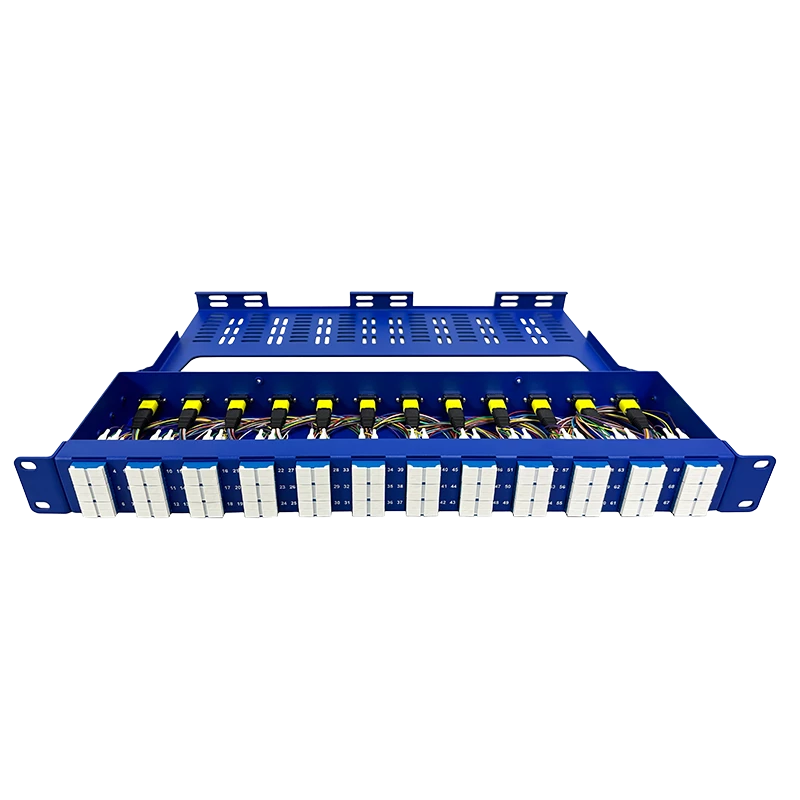

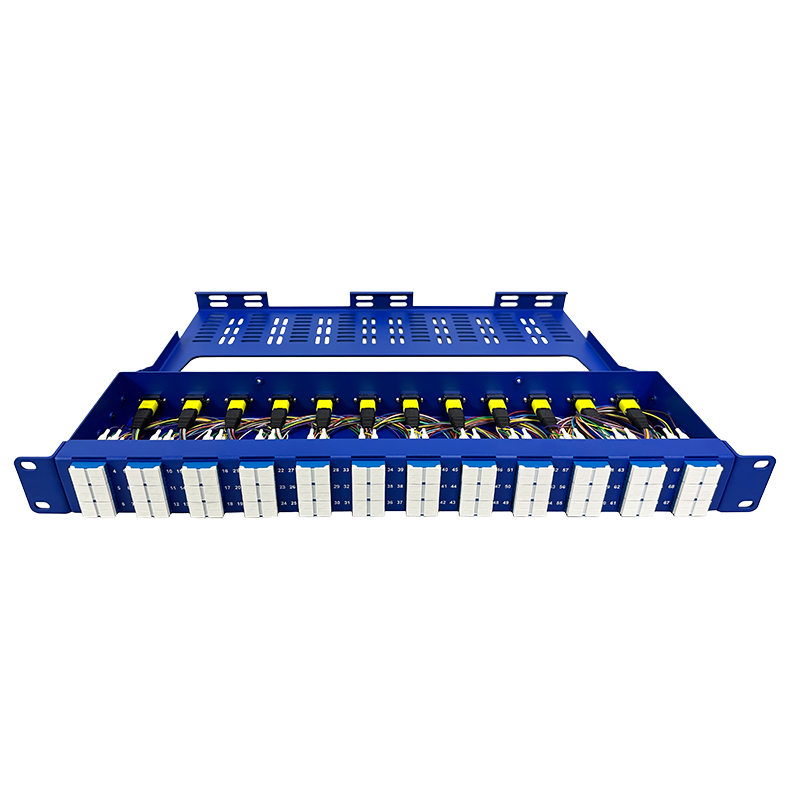

This 144 fiber MTP patch panel eliminates the traditional MTP-to-LC module box structure, realizing a fully straight-through physical path from the rear 144-fiber MTP interface to the front 144 LC duplex ports. Without extra transition links inside, every single fiber runs through the panel in an unobstructed layout, which removes the redundant connection points that exist in conventional modular solutions, and maximizes the utilization of the 19-inch standard 1U rack space to reach the full 144-core capacity.
Features
Low Insertion Loss End-to-End transmission performance
Simplified cable management
Material is with high quality cold rolled steel.
Can install maximum 144 fiber products.
ROHS compliant
REACH compliant
Durability : 500 times mating
Components
|
Component |
Description |
Color Available |
Material |
|
Adaptor |
12 X MTP |
Grey/Green/Aqua/H-Violet |
Plastic |
|
12X 6 ways LC adapter |
Beige/Blue/Aqua/H-Violet |
Plastic |
|
|
MTP-LC Assembly |
12XMTP connector |
Yellow/Aqua/H-Violet/Lime green |
Plastic |
|
12X12 color LC 0.9mm pigtails |
Beige/Blue/Aqua/Violet/Lime green |
LSZH |
Parameter
| Type | Insertion Loss | Return loss |
| MTP/PC Elite | ≤0.35dB | ≥20dB |
| ≤0.35dB+(L-50M)*3dB/km ( For L>50M ) | ≥20dB | |
| MTP/APC Elite | ≤0.35dB | ≥65dB |
| LC/PC | ≤0.2dB | ≥20dB |
| LC/UPC | ≤0.25dB | ≥55dB |
| LC/APC | ≤0.25dB | ≥65dB |
