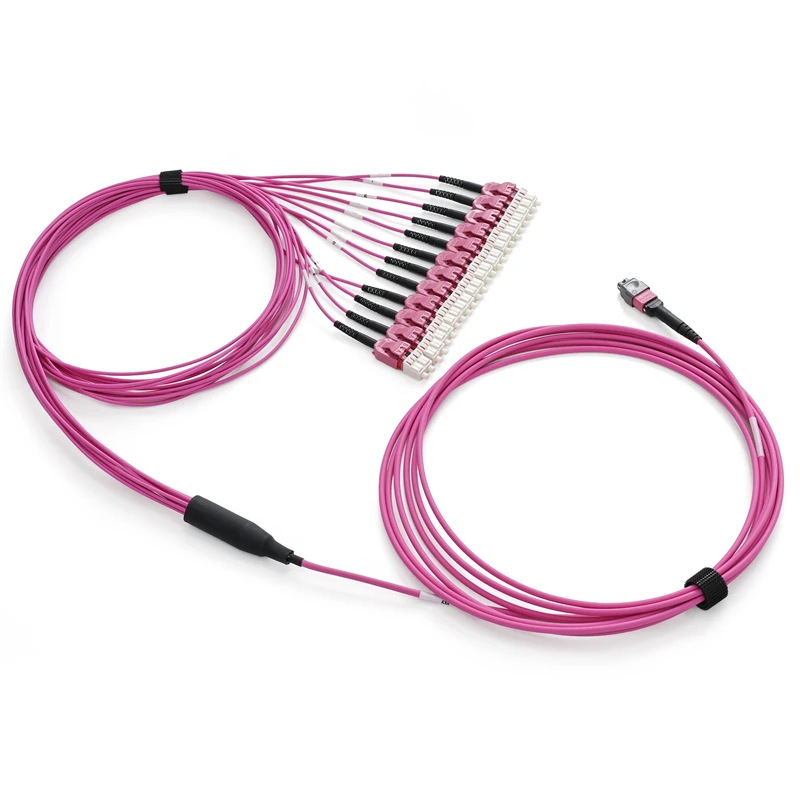

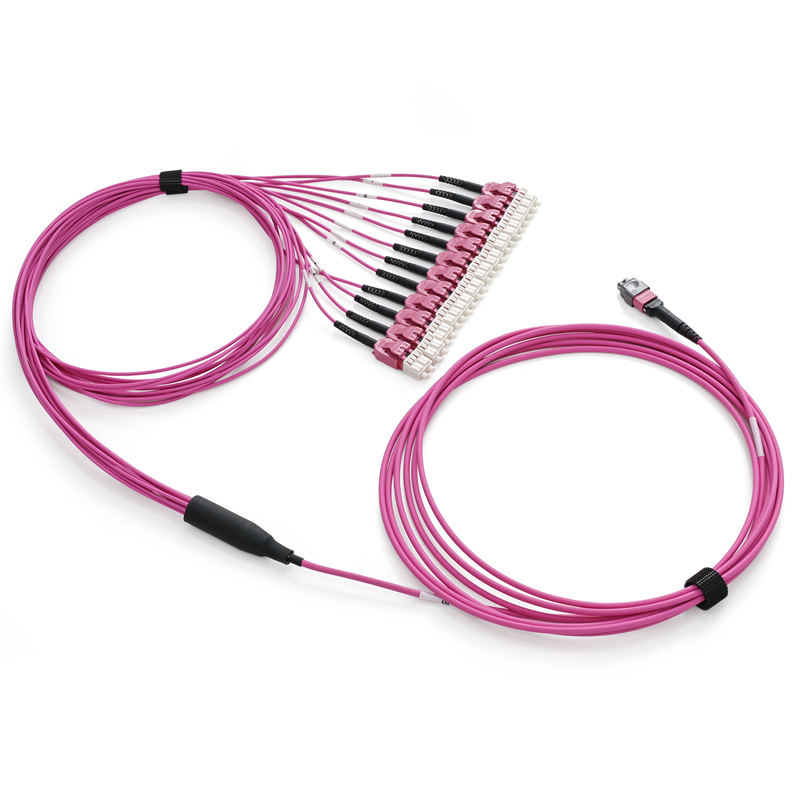

24-Fiber MTP-12LC Duplex Uniboot Patchcord is a high-performance pre-terminated fiber optic solution designed for high-density data center environments. It branches a 24-fiber MTP® backbone into 12 pairs of LC duplex connectors, enabling efficient transition from high-density trunk cabling to standard equipment ports. Widely used in 40G/100G transceiver interconnects, Spine-Leaf architectures, and AI computing clusters.
Features
Used for Hi-density panel, less space more dense
US Conec MTP Elite connector with Low insertion loss
Adaptor color can be aqua or violet or customized
Other brand MPO connectors are also available
Smaller Divider
ROHS compliant
REACH compliant
Component
|
Module |
MTP-12xLC Duplex Uniboot |
Black powder coat |
SPCC |
|
Adaptor |
2 X MTP |
Aqua / H-Violet / Lime Green |
Plastic |
|
12xLC duplex |
Beige / Aqua / H-Violet / Lime Green |
Plastic |
|
|
MTP Assembly |
2XMTP connector |
Aqua / H-Violet / Lime Green |
Plastic |
|
2x12 color LC 0.9mm pigtails |
Beige / Aqua / H-Violet / Lime Green |
LSZH |
Parameter
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC Elite |
≤0.35dB |
≥20dB |
|
≤0.35dB+(L-50M)*3dB/km ( L>50M ) |
≥20dB |
|
|
MTP/APC Elite |
≤0.35dB |
≥65dB |
|
LC/PC |
≤0.1dB |
≥20dB |
|
LC/UPC |
≤0.2dB |
≥55dB |
|
LC/APC |
≤0.2dB |
≥65dB |
