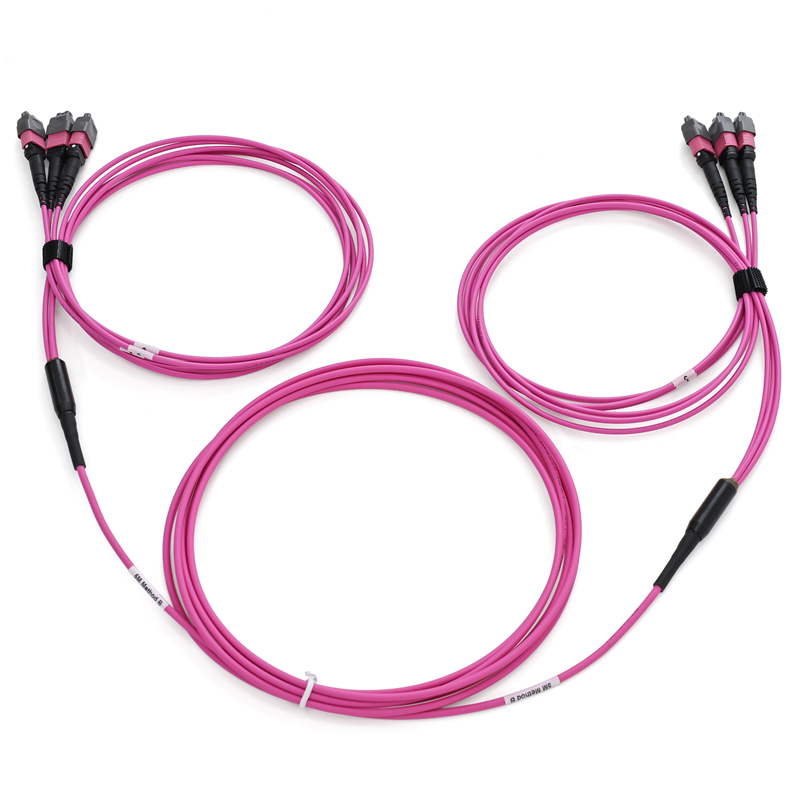

24-Fiber 3xMTP-3xMTP Trunk Cable is an advanced pre-terminated cabling solution designed for ultra-high-density and modular fiber optic systems. By dividing 24 fibers into three groups of 8 fibers each, it integrates three 8-fiber MTP® connectors on both ends, enabling flexible and efficient multi-channel parallel connectivity. It is widely used in fast deployment scenarios within data center Spine-Leaf architectures, AI computing clusters, and high-density patching areas.
Features
US Conec MTP Elite connector with Low insertion loss
Test data tracing available.
ROHS compliant
REACH compliant
Parameter
|
Type |
Side A |
Side B |
MTP Connector Type |
Fiber Type |
Cable Type |
Cable Color |
Jacket |
|
Elite |
MTP/PC Female/Male |
MTP/PC Female/Male |
8 Fiber |
OM3 OM4 OM5 |
24 Fiber |
Aqua Violet Lime Green |
LSZH |
|
Elite |
MTP/APC Female/Male |
MTP/APC Female/Male |
8 Fiber |
G657A |
24 Fiber |
Yellow |
LSZH |
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC |
≤0.35dB |
≥20dB |
|
MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M) |
≥20dB |
|
|
MTP/APC |
≤0.35dB |
≥65dB |
