Description

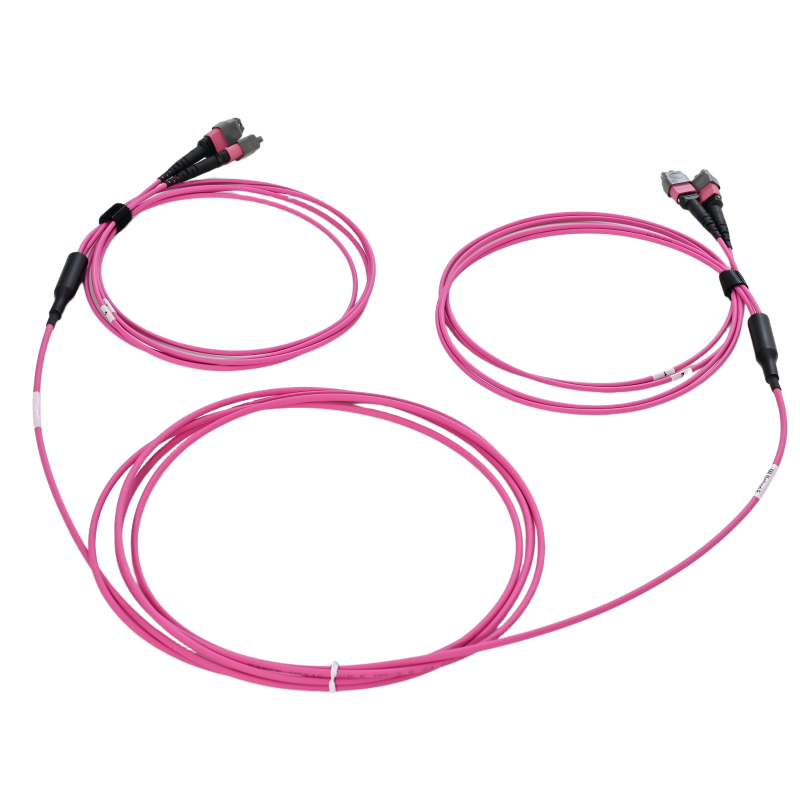

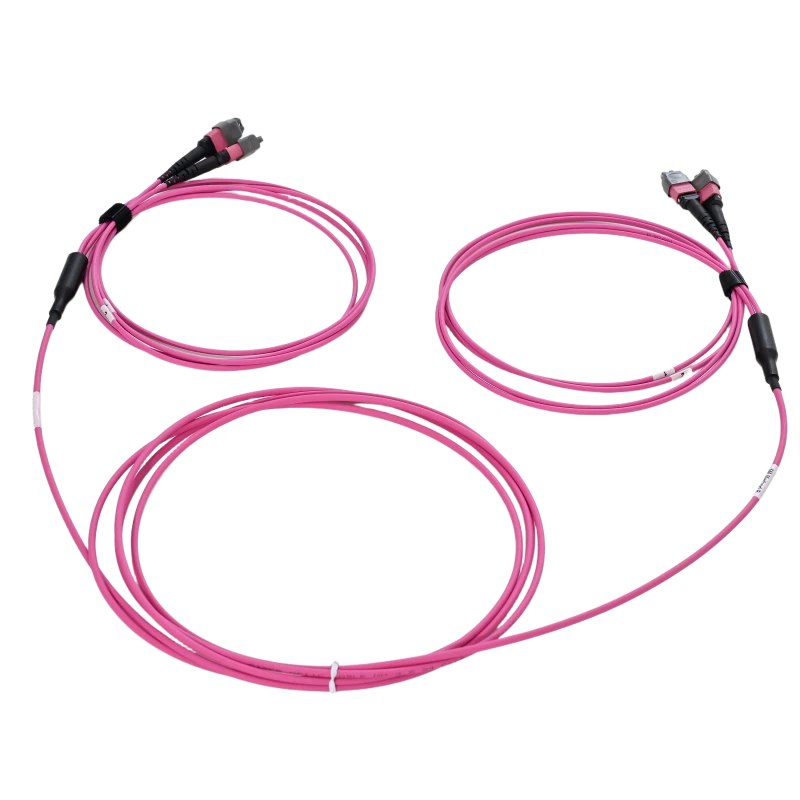

24-Fiber 2xMTP-2xMTP Trunk Cable is a pre-terminated backbone cabling solution designed for high-density fiber network deployments. Featuring 24-fiber MTP® connectors on both ends, it enables high-speed, stable, and plug-and-play connectivity between equipment or distribution areas, widely used in data centers, AI computing clusters, and enterprise-level backbone cabling systems.
Features
US Conec MTP Elite connector with low insertion loss
Test data tracing available.
ROHS compliant
REACH compliant
Components
|
Type |
Side A |
Side B |
MTP Connector Type |
Fiber Type |
Cable Type |
Cable Color |
Jacket |
|
Elite |
MTP/PC Female/Male |
MTP/PC Female/Male |
12Fiber |
OM3 OM4 OM5 |
24 Fiber |
Aqua Violet Lime Green |
LSZH |
|
Elite |
MTP/APC Female/Male |
MTP/APC Female/Male |
12Fiber |
G657A |
24 Fiber |
Yellow |
LSZH |
Parameter
| Type | Insertion Loss | Return loss |
| MTP/PC | ≤0.35dB | ≥20dB |
| MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M) | ≥20dB | |
| MTP/APC | ≤0.35dB | ≥65dB |
