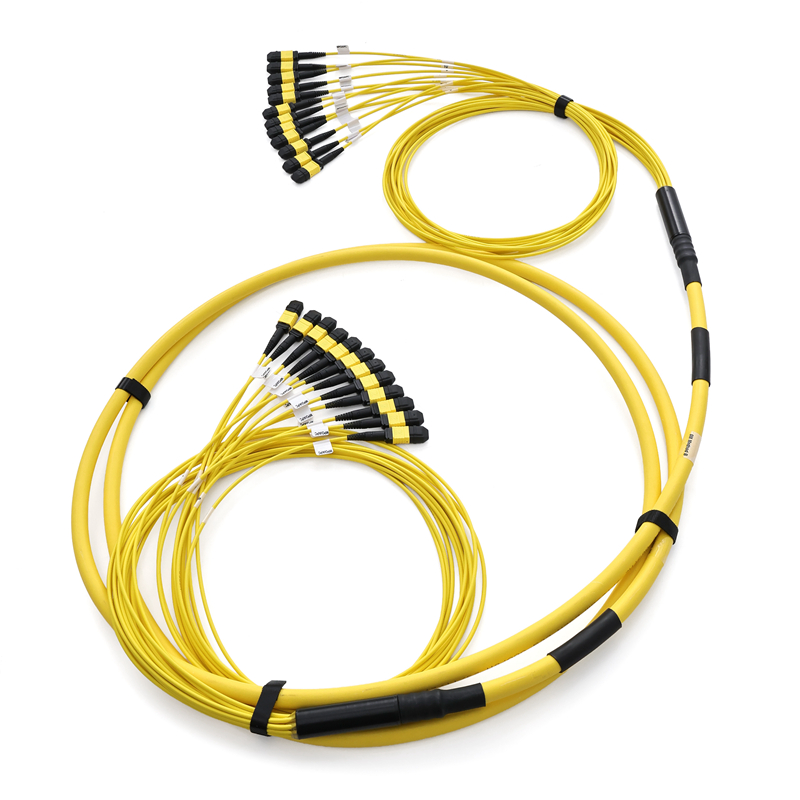

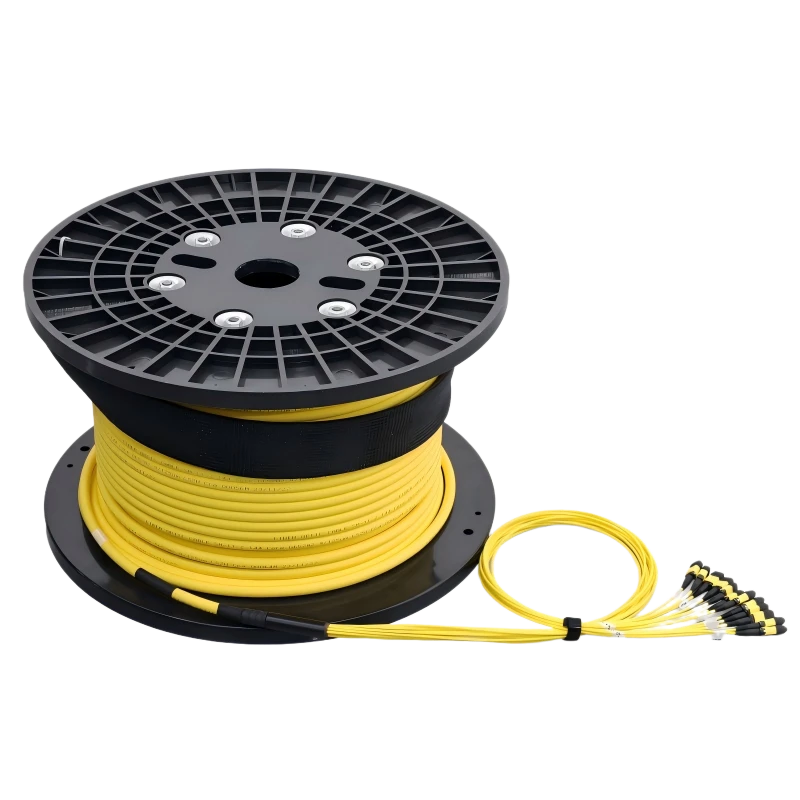

144 Fiber MTP Trunk Cable is a high-density, pre-terminated fiber optic solution designed for hyperscale data centers, AI computing centers, and backbone networks. It splits 144 fibers into 12 groups of 12 fibers each, with 12pcs 12-fiber MTP® connectors integrated on both ends, enabling modular, plug-and-play parallel optical interconnects. Ideal for Spine-Leaf architectures, AI cluster horizontal scaling, and rapid deployment in high-density cabling environments.
Features
US Conec MTP Elite connector with Low insertion loss
Test data tracing available.
ROHS compliant
REACH compliant
Parameter
|
Type |
Side A |
Side B |
MTP Connector Type |
Fiber Type |
Cable Type |
Cable Color |
Jacket |
|
Elite |
MTP/PC Female/Male |
MTP/PC Female/Male |
12 Fiber |
OM3 OM4 |
24-144 Fiber |
Aqua Violet |
LSZH |
|
Elite |
MTP/APC Female/Male |
MTP/APC Female/Male |
12 Fiber |
G657A |
24-144 Fiber |
Yellow |
LSZH |
|
Connector |
Insertion Loss |
Return loss |
|
MTP/PC |
≤0.35dB |
≥20dB |
|
MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M) |
≥20dB |
|
|
MTP/APC |
≤0.35dB |
≥65dB |
