Description

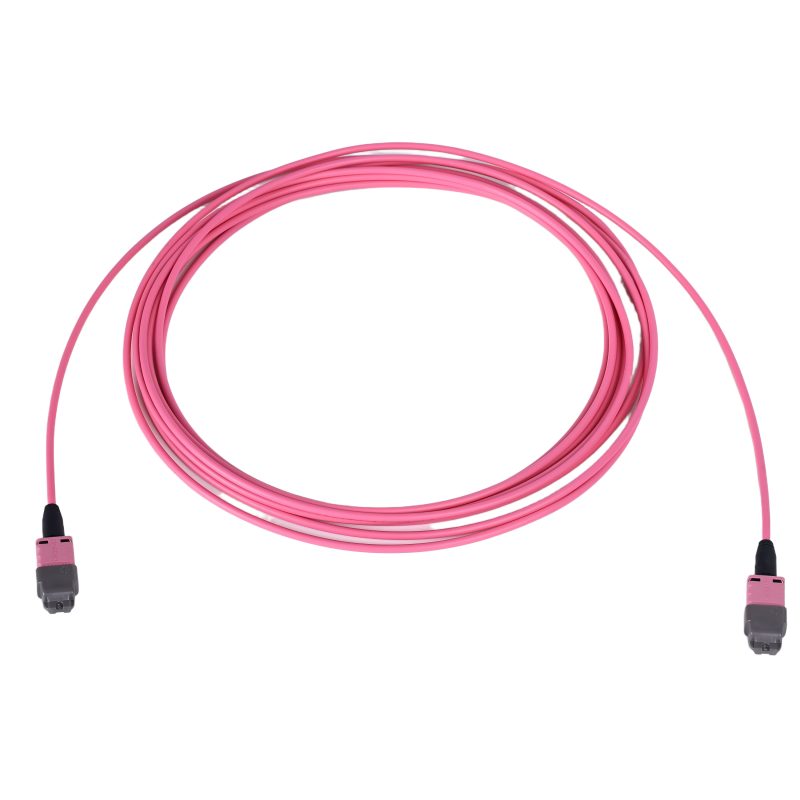

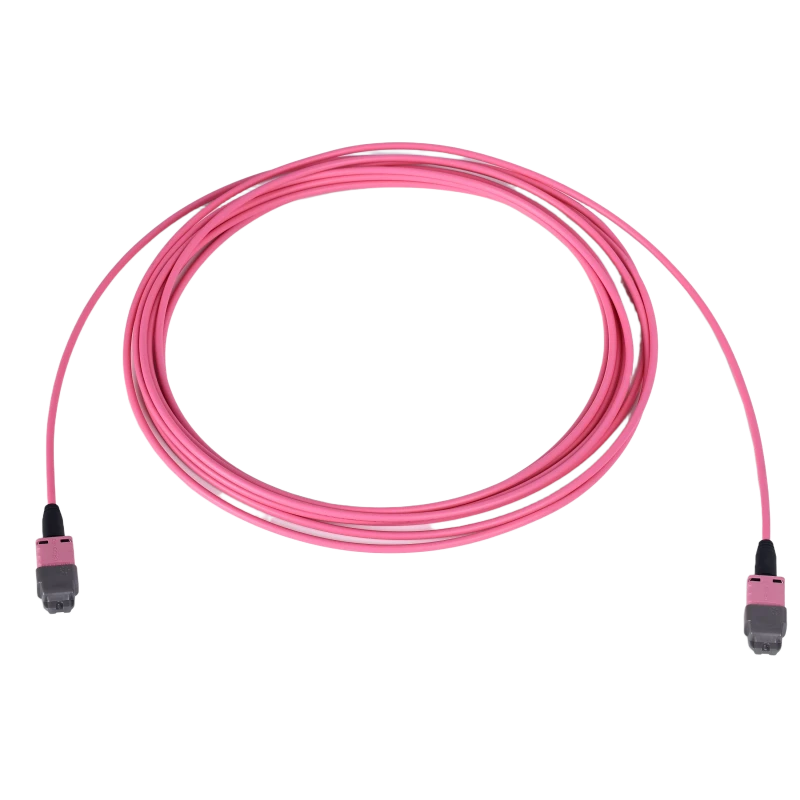

12-Fiber MTP Pro Patchcord OM4 is an enhanced pre-terminated fiber optic solution designed for high-performance data centers. It supports 40G/100G high-speed interconnects and offers low loss, high reliability, and fast deployment, making it ideal for high-density cabling environments with stringent signal integrity requirements.
Features
US Connec MTP Elite connector with low insertion loss
Low insertion loss
Test data tracing available.
MTP PRO allows easy change of the Polarity and Guide Pin.
ROHS compliant
REACH compliant
Components
|
Type |
Side A |
Side B |
MTP Connector Type |
Fiber Type |
Cable Type |
Cable Color |
Jacket |
|
Elite |
MTP/PC Female/Male |
MTP/PC Female/Male |
12/24 Fiber |
OM3 OM4 OM5 |
12/24 Fiber 3.0mm |
Aqua Violet Lime Green |
LSZH |
|
Elite |
MTP/APC Female/Male |
MTP/APC Female/Male |
12/24 Fiber |
G657A |
12/24 Fiber 3.0mm |
Yellow |
LSZH |
Parameter
| Type | Insertion Loss | Return loss |
| MTP/PC | ≤0.35dB | ≥20dB |
| MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M) | ≥20dB | |
| MTP/APC | ≤0.35dB | ≥65dB |
