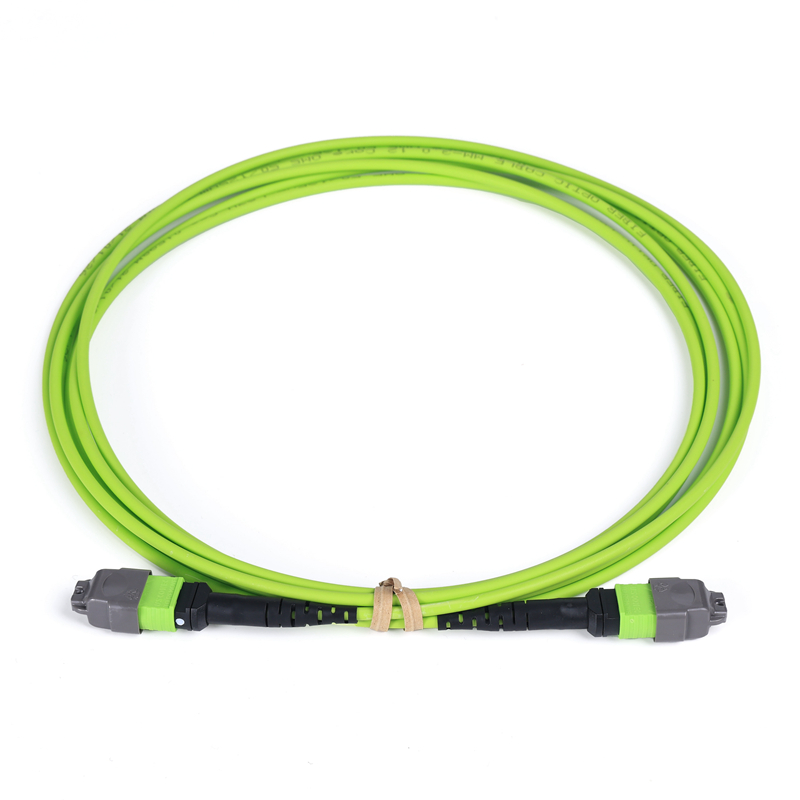

12-Fiber MTP Patchcord OM5 is a pre-terminated fiber optic solution specifically designed for high-density, high-speed data center environments. It supports 40G/100G short-reach optical interconnects, offering low insertion loss and high bandwidth, making it ideal for future-proof, scalable high-speed network deployments.
Features
US Connec MTP Elite connector with low insertion loss
Low insertion loss
Test data tracing available.
ROHS compliant
REACH compliant
Parameter
|
Type |
Side A |
Side B |
MTP Connector Type |
Fiber Type |
Cable Type |
Cable Color |
Jacket |
|
Elite |
MTP/PC Female/Male |
MTP/PC Female/Male |
12/24 Fiber |
OM3 OM4 OM5 |
12/24 Fiber 3.0mm |
Aqua Violet Lime Green |
LSZH |
|
Elite |
MTP/APC Female/Male |
MTP/APC Female/Male |
12/24 Fiber |
G657A |
12/24 Fiber 3.0mm |
Yellow |
LSZH |
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC |
≤0.35dB |
≥20dB |
|
MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M) |
≥20dB |
|
|
MTP/APC |
≤0.35dB |
≥65dB |
