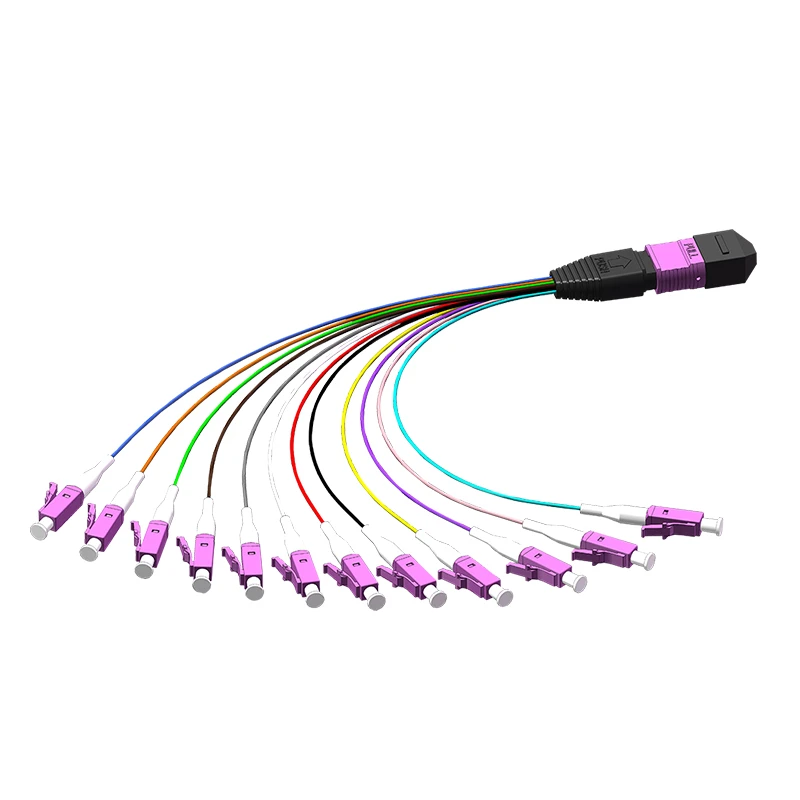

MTP-12F to 12×LC Simplex 900μm Fanout Jumper is a high-performance, pre-terminated branching solution designed for high-density and compact fiber optic modular systems. It splits a 12-fiber MTP® connector at one end into 12 individual LC simplex connectors at the other, utilizing 0.9mm ultra-thin optical cables (900μm) to enable extremely slim and flexible cabling.
This solution is ideal for space-constrained environments such as high-density racks, module cassettes, and optical layer distribution systems, and is widely used in structured cabling for data centers, 40G/100G signal breakout, and MTP-to-LC conversion modules.
Features
Module use, US Connec MTP Elite connector with Low insertion loss.
Test data tracing available.
Other brand MPO connectors are also available
ROHS compliant
REACH compliant
Parameter
|
Trunk cable |
Connector Type |
Insertion Loss |
Return loss |
|
Side A |
MTP/PC |
≤0.35dB |
≥20dB |
|
MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M) |
≥20dB |
||
|
MTP/APC |
≤0.35dB |
≥65dB |
|
|
Side B |
12xLC/PC |
≤ 0.1dB |
≥20dB |
|
12xLC/UPC |
≤ 0.2dB |
≥55dB |
