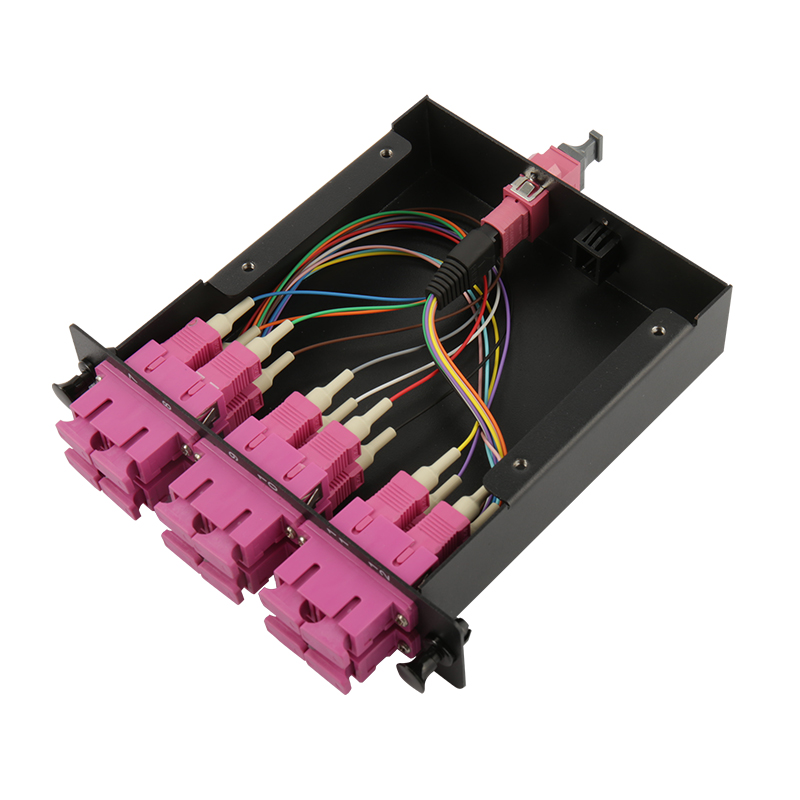

MTP-6SC Duplex Module features a pre-terminated 1×MTP to 6×SC duplex patch cord structure, with each module supporting 12-fiber connectivity. A 1U patch panel can accommodate 12 modules, enabling full-capacity access to 144 fibers. This design integrates multiple fiber channels into a compact unit, significantly improving cabinet space utilization, fitting standard 19-inch racks, and supporting front/rear cable entry with a sliding drawer mechanism for convenient front-side maintenance in enclosed cabinets.
Features
Used for Hi-density panel, less space more dense.
US Connec Elite MTP with Low insertion loss
Adaptor color can be aqua or violet or customized.
Other brand MPO connectors are also available.
ROHS compliant
REACH compliant
Component
|
Module |
MTP-6x SC Duplex |
Black powder coat |
SPCC |
|
Adaptor |
1X MTP |
Aqua / H-Violet / Lime Green |
Plastic |
|
6xSC Duplex |
Beige / Aqua / H-Violet / Lime Green |
Plastic |
|
|
MTP Assembly |
1XMTP connector |
Aqua / H-Violet / Lime Green |
Plastic |
|
1x12 color SC 0.9mm pigtails |
Beige / Aqua / H-Violet / Lime Green |
LSZH |
Parameter
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC Elite |
≤0.35dB |
≥20dB |
|
≤0.35dB+(L-50M)*3dB/km ( L>50M ) |
≥20dB |
|
|
MTP/APC Elite |
≤0.35dB |
≥65dB |
|
SC/PC |
≤0.1dB |
≥20dB |
|
SC/UPC |
≤0.2dB |
≥55dB |
|
SC/APC |
≤0.2dB |
≥65dB |
