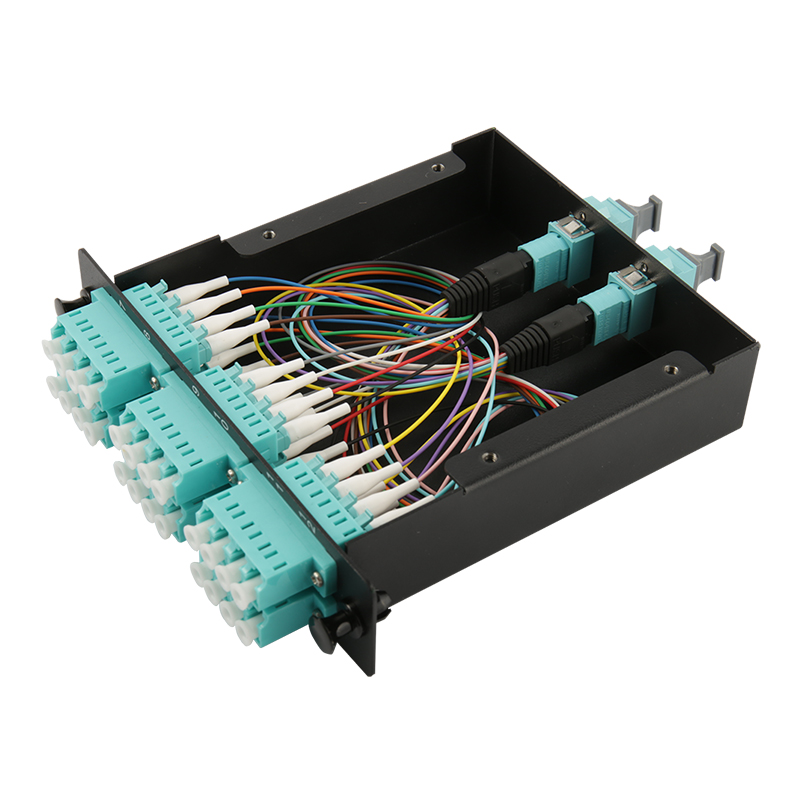

24-Fiber MTP-6LC Quad Module is a high-density fiber optic cabling solution designed for efficient cross-connection between MTP trunk cables and LC device ports in data centers and enterprise networks. Featuring a pre-terminated structure, it enables "plug-and-play" deployment, significantly improving installation efficiency and connection reliability.
Features
Used for Hi-density panel, less space more dense.
US Connec Elite MTP with Low insertion loss
Adaptor color can be aqua or violet or customized.
Other brand MPO connectors are also available.
ROHS compliant
REACH compliant
Component
|
Module |
MTP- 6xLC Quad |
Black powder coat |
SPCC |
|
Adaptor |
2 X MTP |
Aqua / H-Violet / Lime Green |
Plastic |
|
6xLC Quad |
Beige / Aqua / H-Violet / Lime Green |
Plastic |
|
|
MTP Assembly |
2XMTP connector |
Aqua / H-Violet / Lime Green |
Plastic |
|
2x12 color LC 0.9mm pigtails |
Beige / Aqua / H-Violet / Lime Green |
LSZH |
Parameter
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC Elite |
≤0.35dB |
≥20dB |
|
≤0.35dB+(L-50M)*3dB/km ( L>50M ) |
≥20dB |
|
|
MTP/APC Elite |
≤0.35dB |
≥65dB |
|
LC/PC |
≤0.1dB |
≥20dB |
|
LC/UPC |
≤0.2dB |
≥55dB |
|
LC/APC |
≤0.2dB |
≥65dB |
