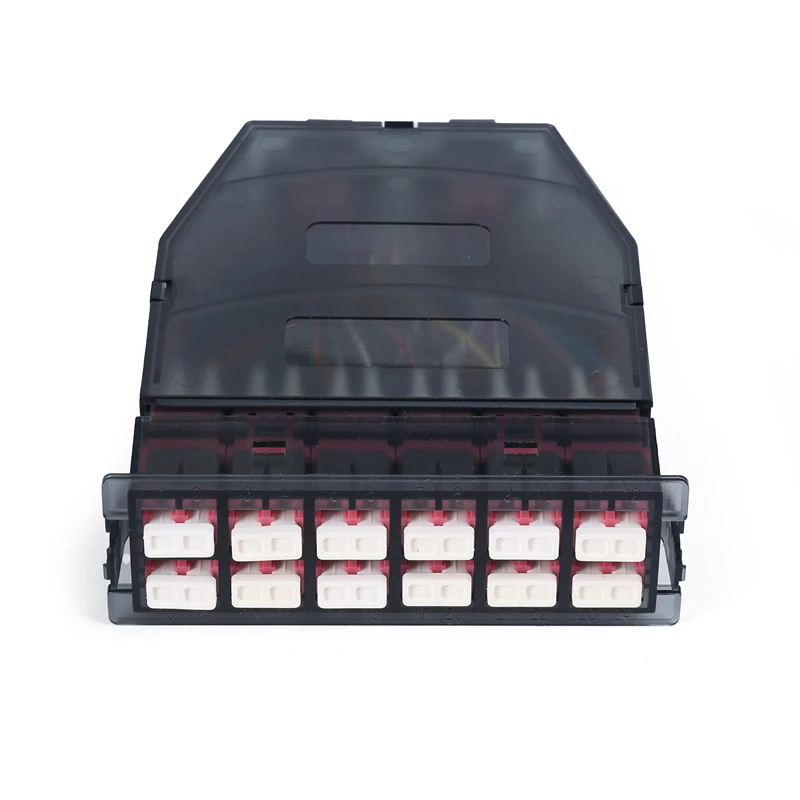

24-Fiber MTP-12 LC Duplex Plastic Module is a high-density, cost-effective fiber optic cabling solution designed for efficient cross-connection from MTP trunk cables to LC device ports in data centers and enterprise networks. Featuring a pre-terminated structure, it supports "plug-and-play" deployment, significantly improving installation efficiency and system reliability.
Features
Used for Hi-density panel, less space more dense.
US Connec Elite MTP with Low insertion loss
Adaptor color can be aqua or violet or customized.
Other brand MPO connectors are also available.
ROHS compliant
REACH compliant
Component
|
Module |
MTP-12xLC Duplex |
Transparent Grey |
Plastic |
|
Adaptor |
2 X MTP |
Aqua / H-Violet / Lime Green |
Plastic |
|
12xLC Duplex |
Beige / Aqua / H-Violet / Lime Green |
Plastic |
|
|
MTP Assembly |
2XMTP connector |
Aqua / H-Violet / Lime Green |
Plastic |
|
2x12 color LC 0.9mm pigtails |
Beige / Aqua / H-Violet / Lime Green |
LSZH |
Parameter
|
Type |
Insertion Loss |
Return loss |
|
MTP/PC Elite |
≤0.35dB |
≥20dB |
|
≤0.35dB+(L-50M)*3dB/km ( L>50M ) |
≥20dB |
|
|
MTP/APC Elite |
≤0.35dB |
≥65dB |
|
LC/PC |
≤0.1dB |
≥20dB |
|
LC/UPC |
≤0.2dB |
≥55dB |
|
LC/APC |
≤0.2dB |
≥65dB |
