Feature

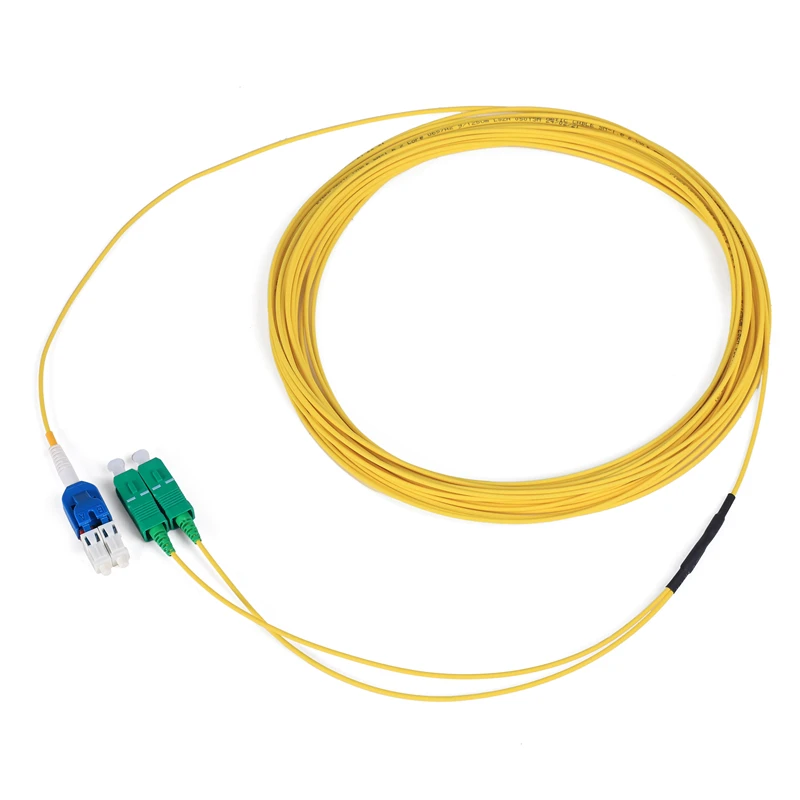

◆ Compact LC Uniboot design for Hi-density use
◆ Easy to change the polarity on LC side
◆ Smaller Divider
◆ Low insertion loss
◆ Good in repeatability
Specifications
|
End A |
Dust Cap Color |
Connector Type |
Connector Color |
Boot Type |
Boot Color |
|
LC |
Beige or Customized |
LC/UPC LC/PC |
Blue Aqua Violet Lime Green |
Standard |
Beige Black |
|
End B |
Dust Cap Color |
Connector Type |
Connector Color |
Boot Type |
Boot Color |
|
LC |
Beige or Customized |
SC/UPC SC/APC SC/PC |
Blue Green Aqua Violet Lime Green |
Standard |
Beige Blue Green |
|
|
Fiber Type |
Cable Type |
Cable OD |
Jacket Color |
Jacket Material |
|
Cable |
SM G657A2 9/125 MM OM3 50/125 MM OM4 50/125 MM OM5 50/125 |
Round |
2.1mm 3.0mm |
Yellow Orange Aqua Violet Lime Green
|
LSZH PVC |
Technical Data
|
Fiber Type |
Connector Type |
Insertion Loss |
Return Loss |
Repeatability |
Durability |
Operating temperature |
|
SM |
UPC |
≤0.2dB |
≥55dB |
≤0.2dB |
＞500 |
-20~75℃ |
|
APC |
≥65dB |
|||||
|
MM |
PC |
≤0.1dB |
/ |
