| Category | Item | Specification / Standard |

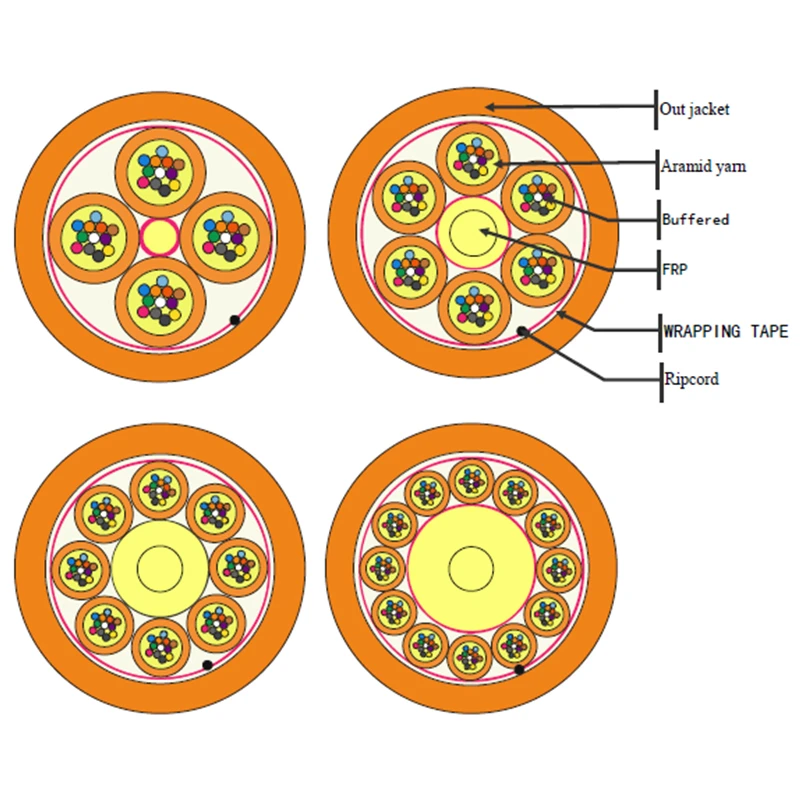

| Cable Construction | Fiber | colored |
| Tight tube | Ø 0.87 ± 0.05mm, EIA/TIA 598 | |
| Outer Diameter, Weight | see table | |
| Environmental Performance Standards | Temperature range | -20 to +70°C |
| Tensile load | see table | |
| Crush resistance | see table | |
| Impact resistance | 25cycles | |
| Repeated bending | 500cycles | |
| Bending radius | 15xOD | |
| Materials | 2002/95/EC (RoHS) compliant | |
| General Information | Jacket standard colors: (other colors upon request) | E9/125 – yellow |
| G50/125 OM2 – orange | ||
| G50/125 OM3 – aqua | ||
| G50/125 OM4 – heather violet | ||
| G62.5/125 OM1 – orange | ||
| Cable printing | customized | |
| Burning Characteristics | Zero halogens/Corrosive gases | IEC 60754-1/-2 |
| Flame retardant | IEC 60332-1/IEC 60332-3-24 | |
| Smoke emission | IEC 61034-1/-2 |
Parameter
|
Fiber Account |
OD (mm) |
Nominal Weight (kg/km) |
Max Tension (N)
|
Max crushing Resistance (N/100) |
||
|
Short term |
Long term |
Short term |
Long term |
|||
|
24 |
15.5±0.8 |
182 |
1000 |
400 |
1000 |
300 |
|
36 |
18.8±0.8 |
245 |
1200 |
480 |
1000 |
300 |
|
48 |
17.0±0.8 |
210 |
1750 |
700 |
1000 |
300 |
|
72 |
21.0±0.8 |
328 |
2500 |
1000 |
1000 |
300 |
|
96 |
22.6+-0.6 |
500 |
2000 |
800 |
1000 |
300 |
|
108 |
26.2±0.8 |
545 |
3000 |
1200 |
1000 |
300 |
|
144 |
28.2±0.8 |
678 |
4000 |
1600 |
1000 |
300 |
