| Category | Item | Specification / Standard |

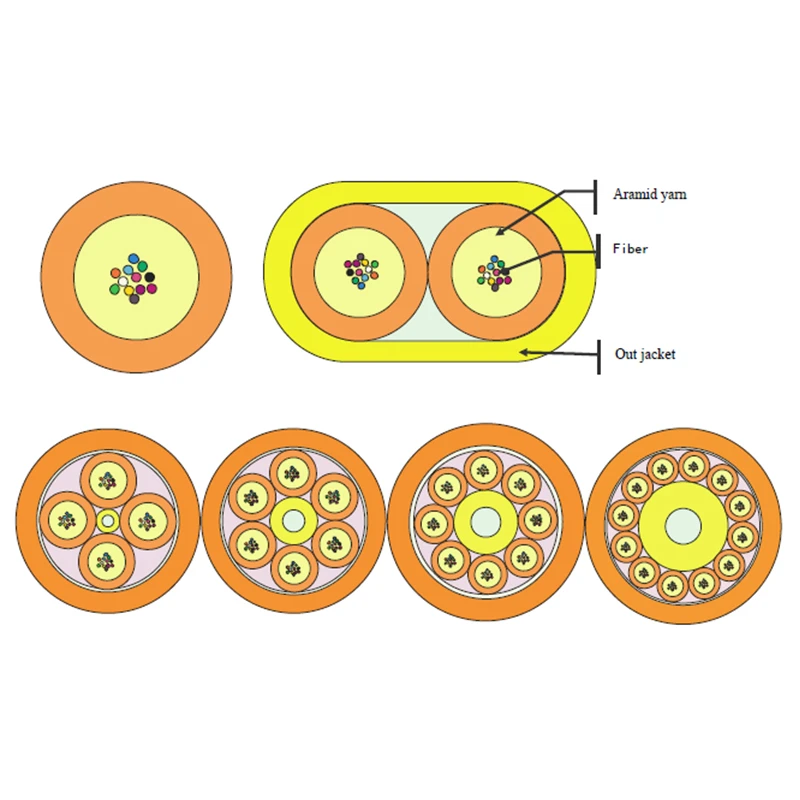

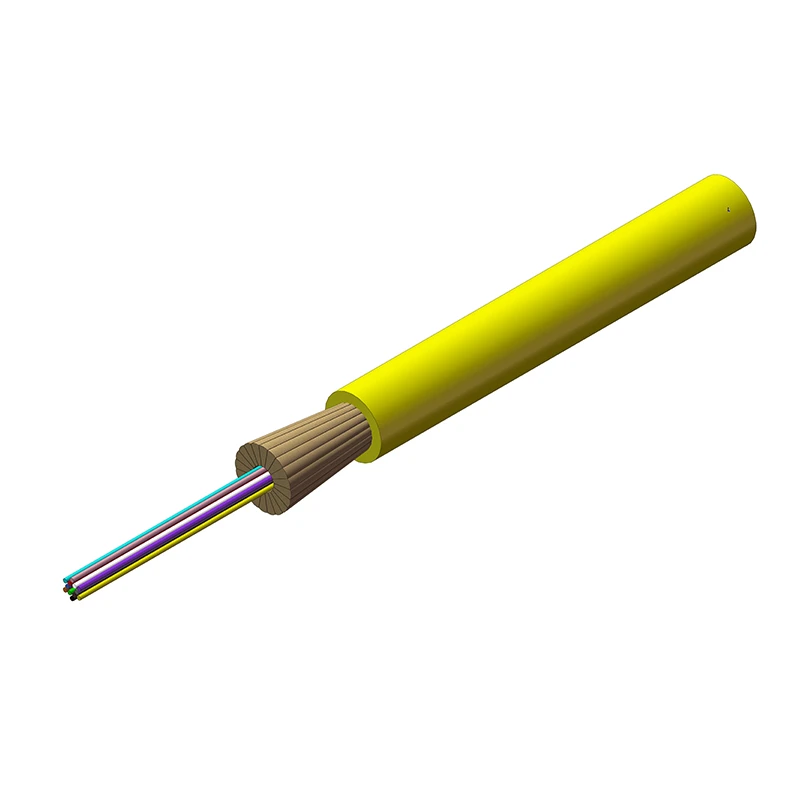

| Cable Construction | Fiber | colored |
| Tight tube | Ø 250um, color EIA/TIA 598 | |
| Outer Diameter, Weight | see table | |
| Environmental Performance Standards | Temperature range | -20 to +70°C |
| Tensile load | see table | |
| Crush resistance | see table | |
| Impact resistance | 25cycles | |
| Repeated bending | 500cycles | |
| Bending radius | 15xOD | |
| Materials | 2002/95/EC (RoHS) compliant | |
| General Information | Jacket standard colors | E9/125 – yellow |
| G50/125 OM3 – aqua | ||
| G50/125 OM4 – heather violet | ||
| Cable printing | customized | |
| Burning Characteristics | Zero halogens/Corrosive gases | IEC 60754-1/-2 |
| Flame retardant | IEC 60332-1/IEC 60332-3-24 | |
| Smoke emission | IEC 61034-1/-2 |
Parameter
|
Fiber Account |
OD (mm) |
Nominal Weight (kg/km) |
Max Tension (N)
|
Max crushing Resistance (N/100) |
||
|
Short term |
Long term |
Short term |
Long term |
|||
|
12 |
3.0±0.15 |
7.8 |
150 |
80 |
500 |
150 |
|
24 |
4.2±0.3× 7.6±0.4 |
31 |
300 |
160 |
1000 |
300 |
|
36 |
9.0+-0.5 |
78 |
500 |
180 |
1000 |
300 |
|
48 |
9.0±0.5 |
79 |
600 |
200 |
1000 |
300 |
|
72 |
11.2±0.5 |
126 |
1000 |
300 |
1000 |
300 |
|
96 |
13.5±0.5 |
178 |
1000 |
300 |
1000 |
300 |
|
144 |
17.5±0.5 |
285 |
1000 |
300 |
1000 |
300 |
