| Category | Item | Specification / Standard |

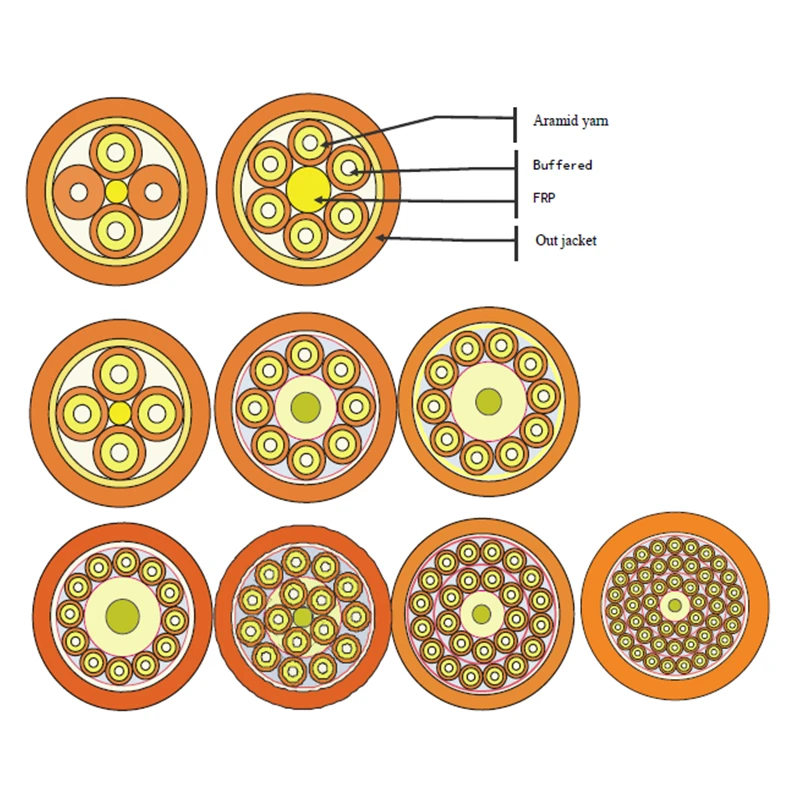

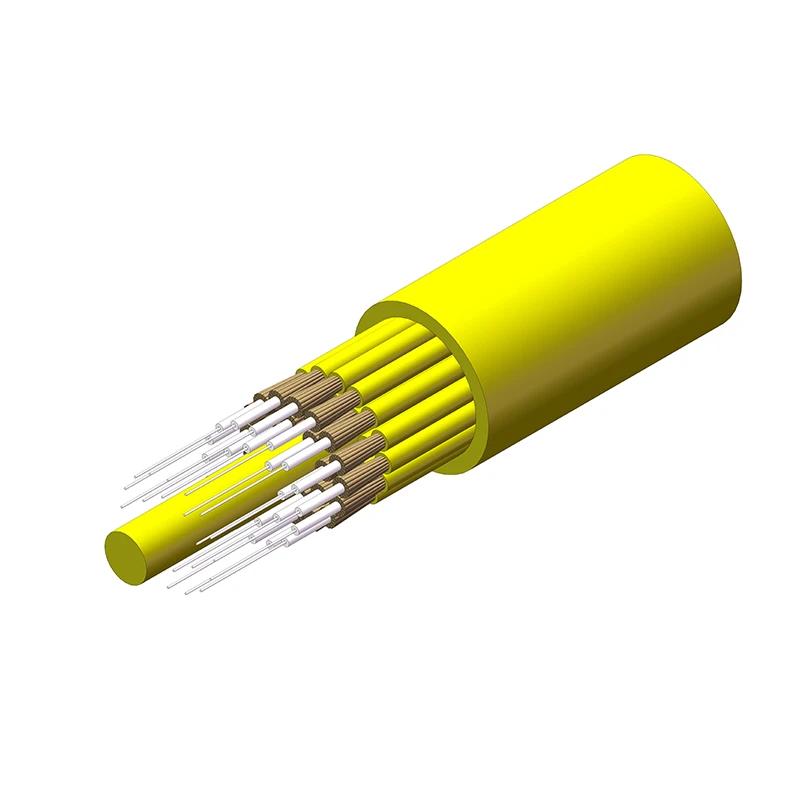

| Cable Construction | Fiber | colored |
| Easy strip tube | Ø 0.87 ± 0.05mm | |
| 2.0mm LSZH Jacket | 2.0 ± 0.1mm; | |
| Outer Diameter, Weight | see table | |
| Environmental Performance Standards | Temperature range | -20 to +70°C |
| Tensile load | see table | |
| Crush resistance | see table | |
| Impact resistance | 25cycles | |
| Repeated bending | 500cycles | |
| Bending radius | 15xOD | |
| Materials | 2002/95/EC (RoHS) compliant | |
| General Information | Jacket standard colors: (other colors upon request) | E9/125 – yellow |
| G50/125 OM2 – orange | ||
| G50/125 OM3 – aqua | ||
| G50/125 OM4 – heather violet | ||
| G62.5/125 OM1 – orange | ||
| Cable printing | customized | |
| Burning Characteristics | Zero halogens/Corrosive gases | IEC 60754-1/-2 |
| Flame retardant | IEC 60332-1/IEC 60332-3-24 | |
| Smoke emission | IEC 61034-1/-2 |
Parameter
|
Fiber Account |
OD (mm) |
Nominal Weight (kg/km) |
Max Tension (N) |
Max crushing Resistance (N/100) |
||
|
Short term |
Long term |
Short term |
Long term |
|||
|
2 |
7.5+-0.5 |
50 |
660 |
200 |
1000 |
300 |
|
4 |
7.5+-0.5 |
51 |
660 |
200 |
1000 |
300 |
|
6 |
9.0+-0.5 |
68 |
700 |
200 |
1000 |
300 |
|
8 |
10.5+-0.5 |
88 |
800 |
250 |
1000 |
300 |
|
10 |
11.5+-0.5 |
102 |
1000 |
300 |
1000 |
300 |
|
12 |
12.5+-0.5 |
128 |
1200 |
400 |
1000 |
300 |
|
16 |
13.0+-0.5 |
168 |
1200 |
400 |
1000 |
300 |
|
24 |
15.5+-0.5 |
198 |
1200 |
400 |
1000 |
300 |
|
48 |
20.5+-0.5 |
246 |
1800 |
600 |
1000 |
300 |
