Features

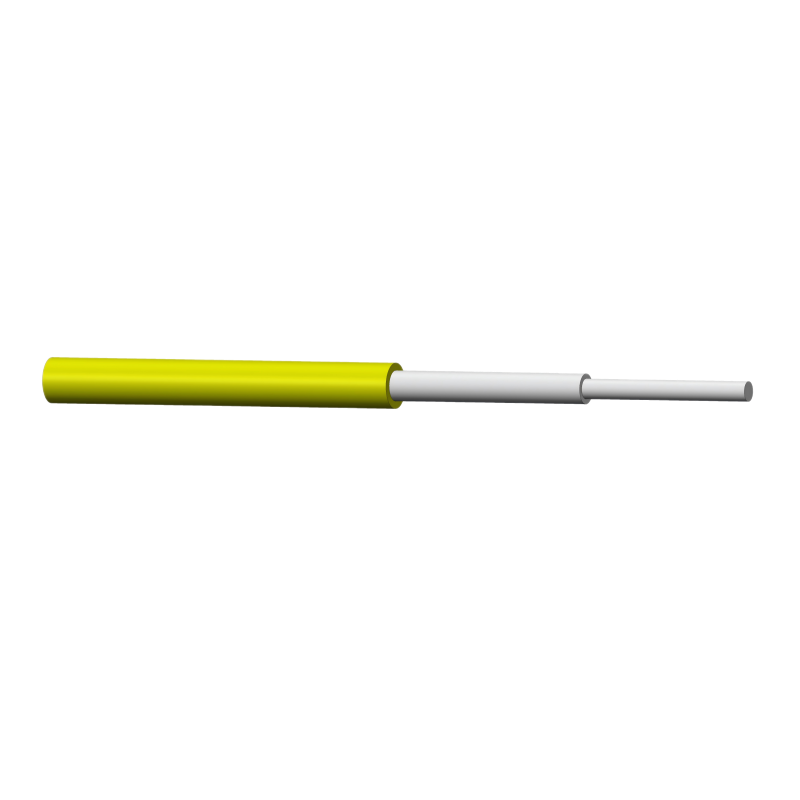

Thin and flexible fiber optic cable 0.9 mm with easy strip tube
Flame retardant, halogen-free LSZH jacket with low fire load
Application
For direct connector termination or splicing in optical distribution frames
| Category | Item | Specification / Standard |
| Cable Construction | Fiber | colored |
| Tight tube | Ø 0.87 ± 0.05mm | |
| Environmental Performance Standards | Temperature range | -20 to +70°C |
| Tensile load | 6N | |
| Crush resistance | 50N | |
| Impact resistance | 100 impacts | |
| Repeated bending | 3 cycles | |
| Bending radius | 25mm | |
| Materials | 2002/95/EC (RoHS) compliant | |
| General Information | 900um standard colors | E9/125 – yellow |
| G50/125 OM2 orange | ||
| G50/125 OM3 – aqua | ||
| G50/125 OM4 – heather violet | ||
| G62.5/125 OM1 orange | ||
| Burning Characteristics | Zero halogens/Corrosive gases | IEC 60754-1/-2 |
| Flame retardant | IEC 60332-1/IEC 60332-3-24 | |
| Smoke emission | IEC 61034-1/-2 |
