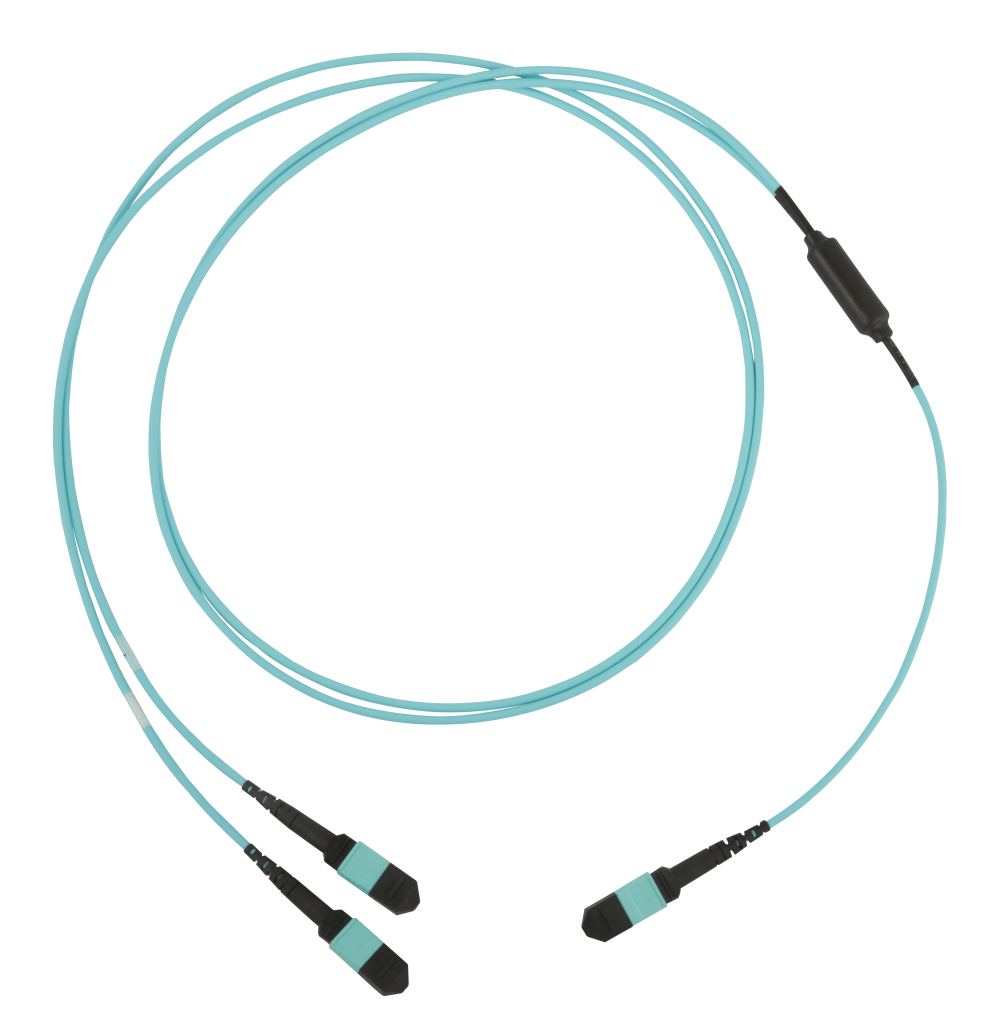

MTP Y cable

MTP Y cable

Features

 Low insertion loss

 Test data tracing available.

 ROHS compliant

 REACH compliant

 Parameter

Type

Side  A

Side  B

MTP  Connector Type

Fiber Type

Cable Type

Cable Color

Jacket

Elite

MTP/PC

Female/Male

MTP/PC

Female/Male

24Fiber

OM3

OM4

24 Fiber

Aqua

Violet

LSZH

Elite

MTP/APC

Female/Male

MTP/APC

Female/Male

24Fiber

G657A

24 Fiber

Yellow

LSZH


Type

Insertion Loss

Return loss

MTP/PC

≤0.35dB

≥20dB

MTP/PC≤0.35dB+(L-50M)*3dB/km (L>50M)

≥20dB

MTP/APC

≤0.35dB

≥65dB
